Zongshen ZS190 190cc Engine Motor For Dirt Bike ATV Quad Thumpstar Atomik Motor

Description:

• Type: Zongshen 4 Stroke – Single Cylinder
• Model: 1P62YML-2
• Cooling: External Oil Cooling (Oil Cooler no included)
• Displacement: 187.2
• Bore/Stroke: 62 x 62mm
• Max: Power Output (KW/Rpm): 12KW / 9500 rpm
• Max: 13N.m / 8000 rpm
• Compression Ratio: 11.0:1
• Start Type: Electric start and kick start
• Clutch: Heavy Duty Wet Multiplane
• Ignition: DCI
• Gear: 5 – Speed, any gear-start with Clutch in
• Gear Orientation: 1-N–2–3–4–5
• Fuel Type: High Octane Fuel (92RON or greater)
• Engine Oil: non-synthetic 20w/50sf motorcycle oil
• Sprocket: 420 15T

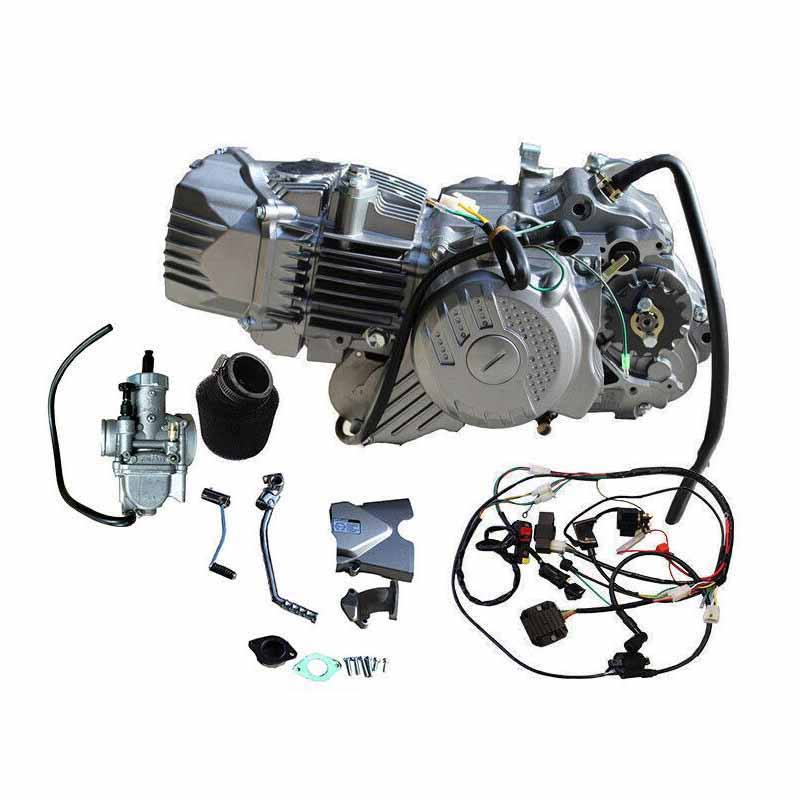

Package includes:

• 190cc Zongshen engine
• Wiring Harness
• Kill Switch
• Key Switch /2 Key
• CDI
• Solenoid
• Rectifier
• Coil With Lead
• Intake Manifold
• Gaskets
• Bolts
• Spark Plug
• Gear lever
• Kick Start Lever (16mm shaft)
• JK PE28 Carby (option only)
• 48mm air filter (option only)

Important note:

• Please check the size and images before purchase
