Preorder now; restock is expected around February 27th.

• For Rear 27.5-inch wheel with a tire width between 1.75 - 2.25 Inches - Please note that the rim outer diameter is not the rim size, the writing on the side wall of your tire is the size of the wheel.

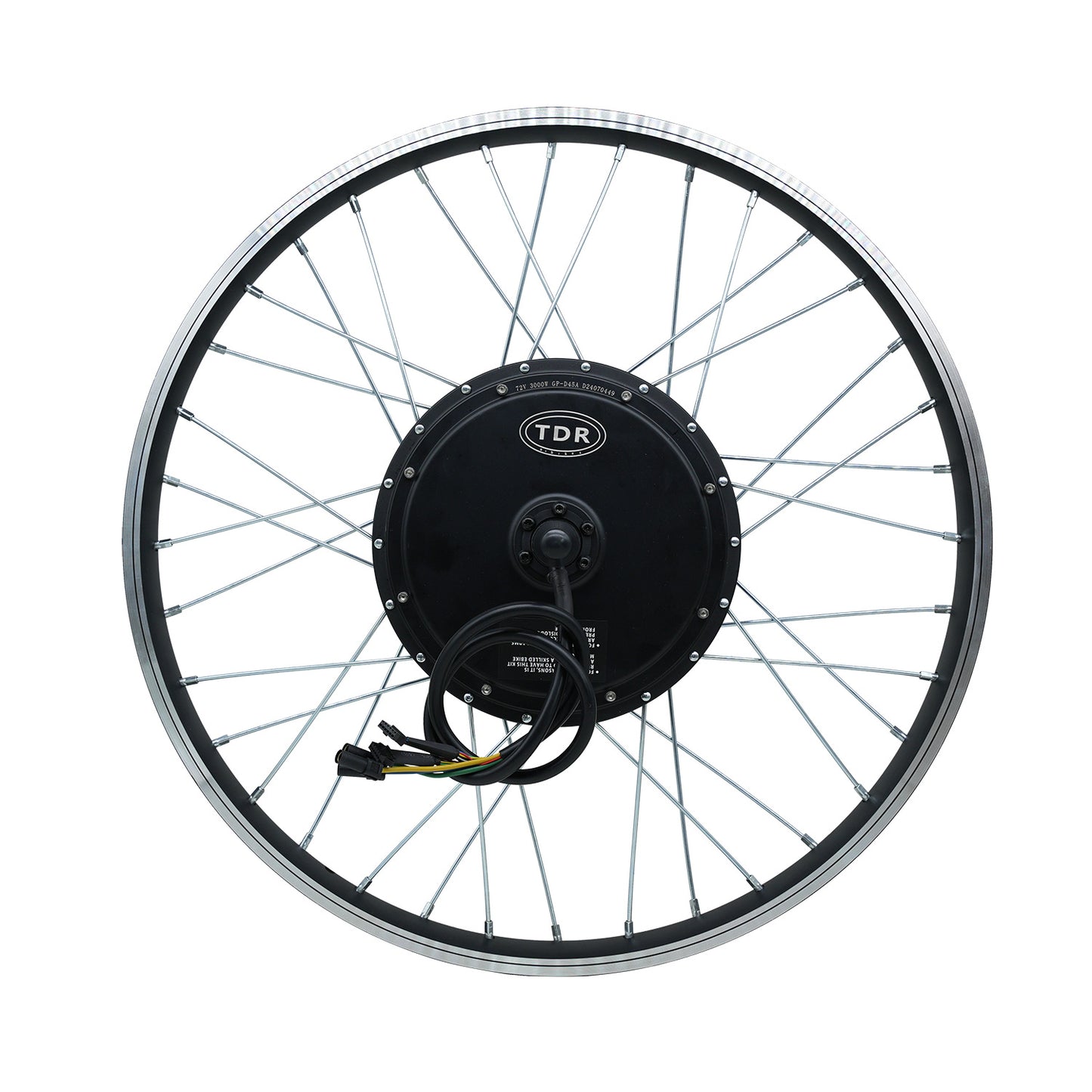

• Rim Motor: 72V 3000W Brushless Direct-Drive Hub Motor
• Torque: 95 N.M

• Maximum Speed: 90 km/h

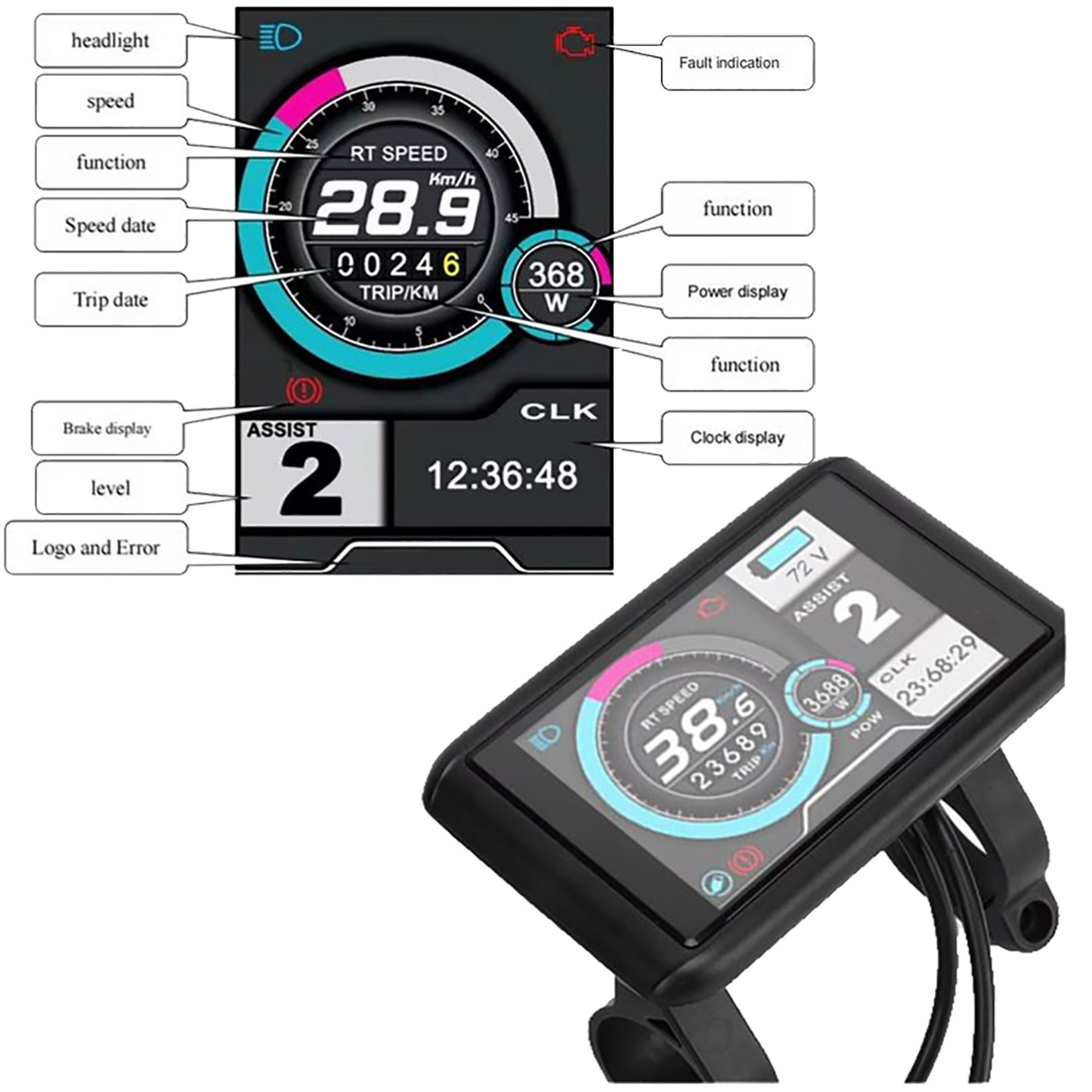

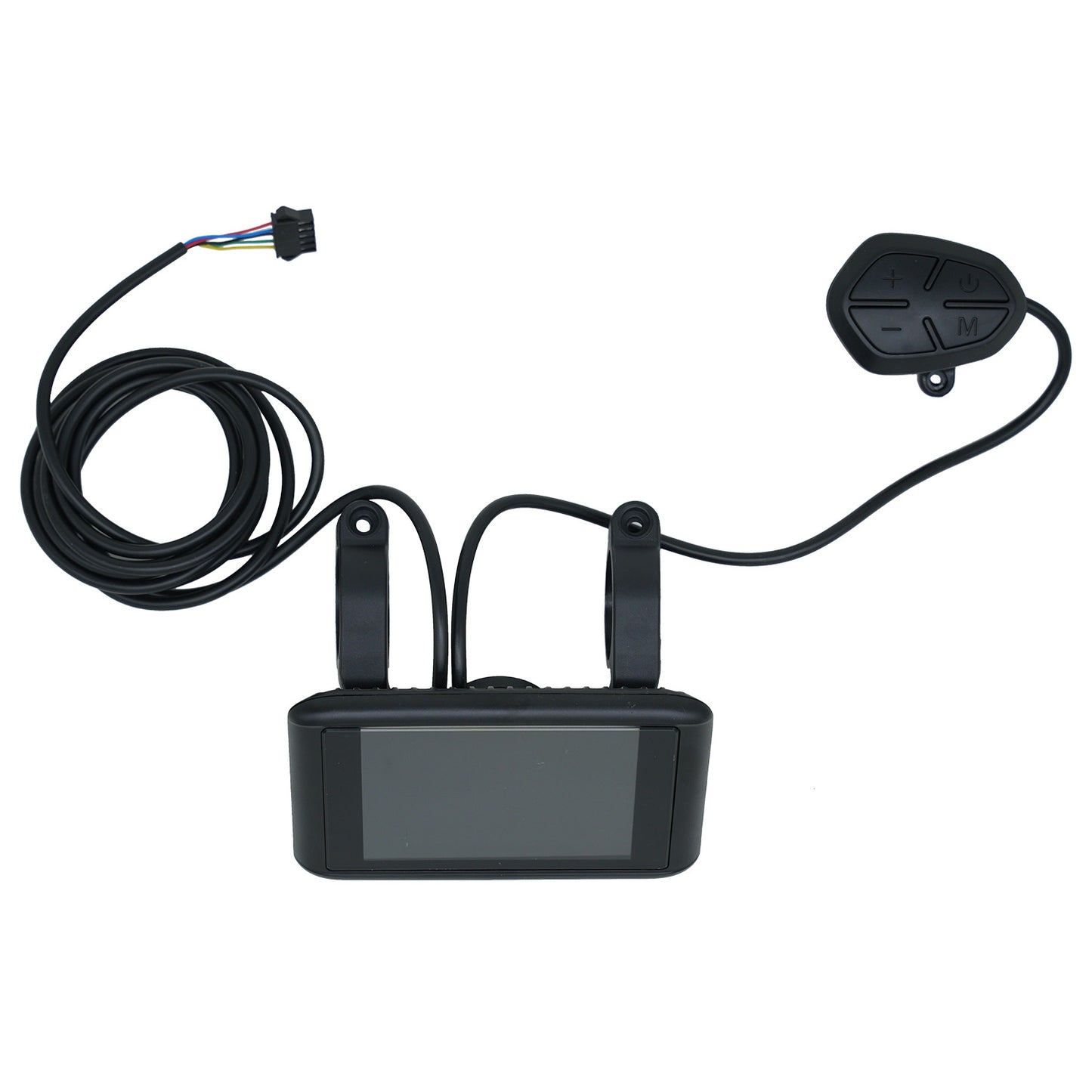

• Display: Intelligent Colored LCD Panel Display

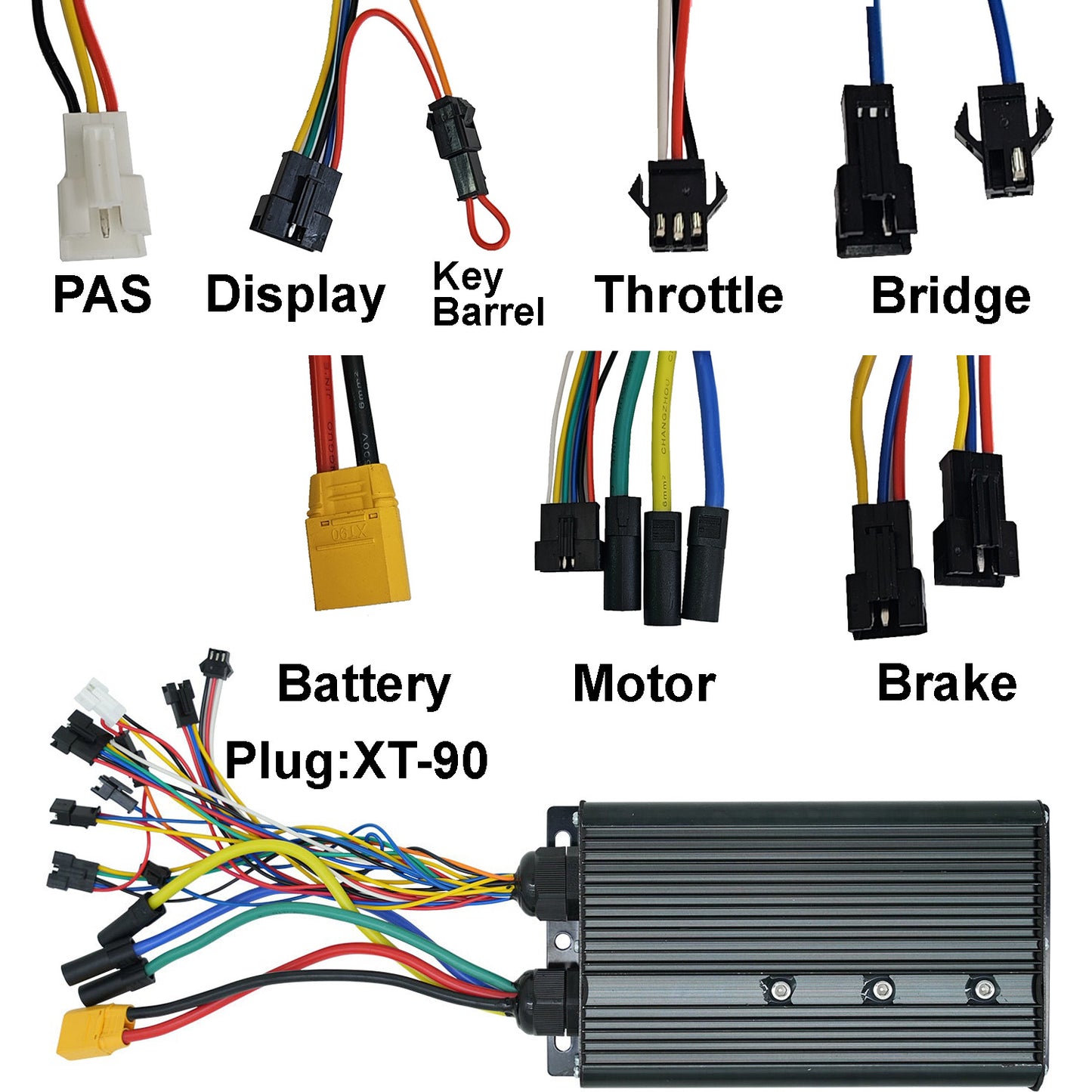

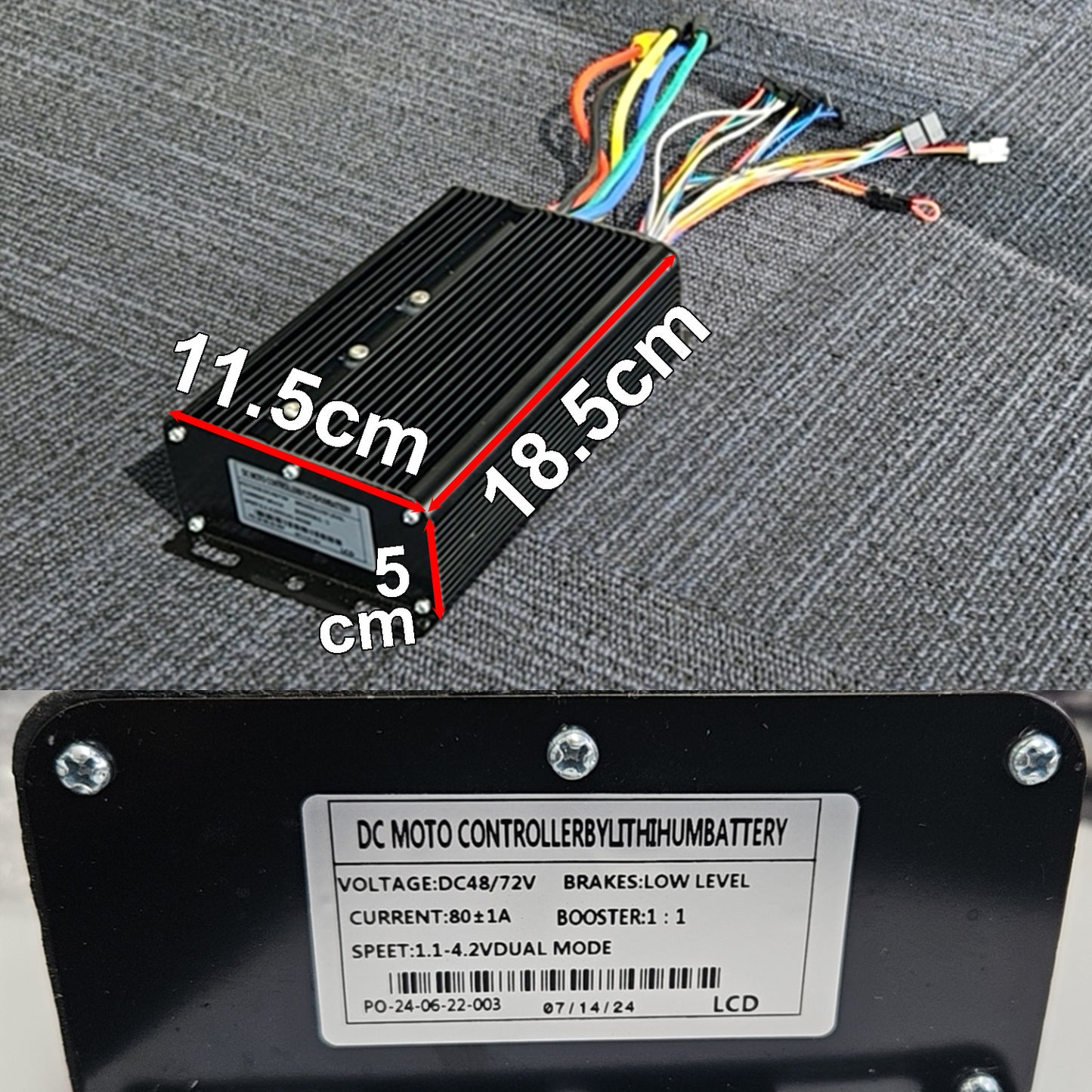

• Controller: 72V Intelligent Motor Controller, the Current is 80±1A
• Riding mode: Twist Throttle Electric Assist Mode (No pedal assist)
• Rear Fork Width Requirement:135 - 142mm
• Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

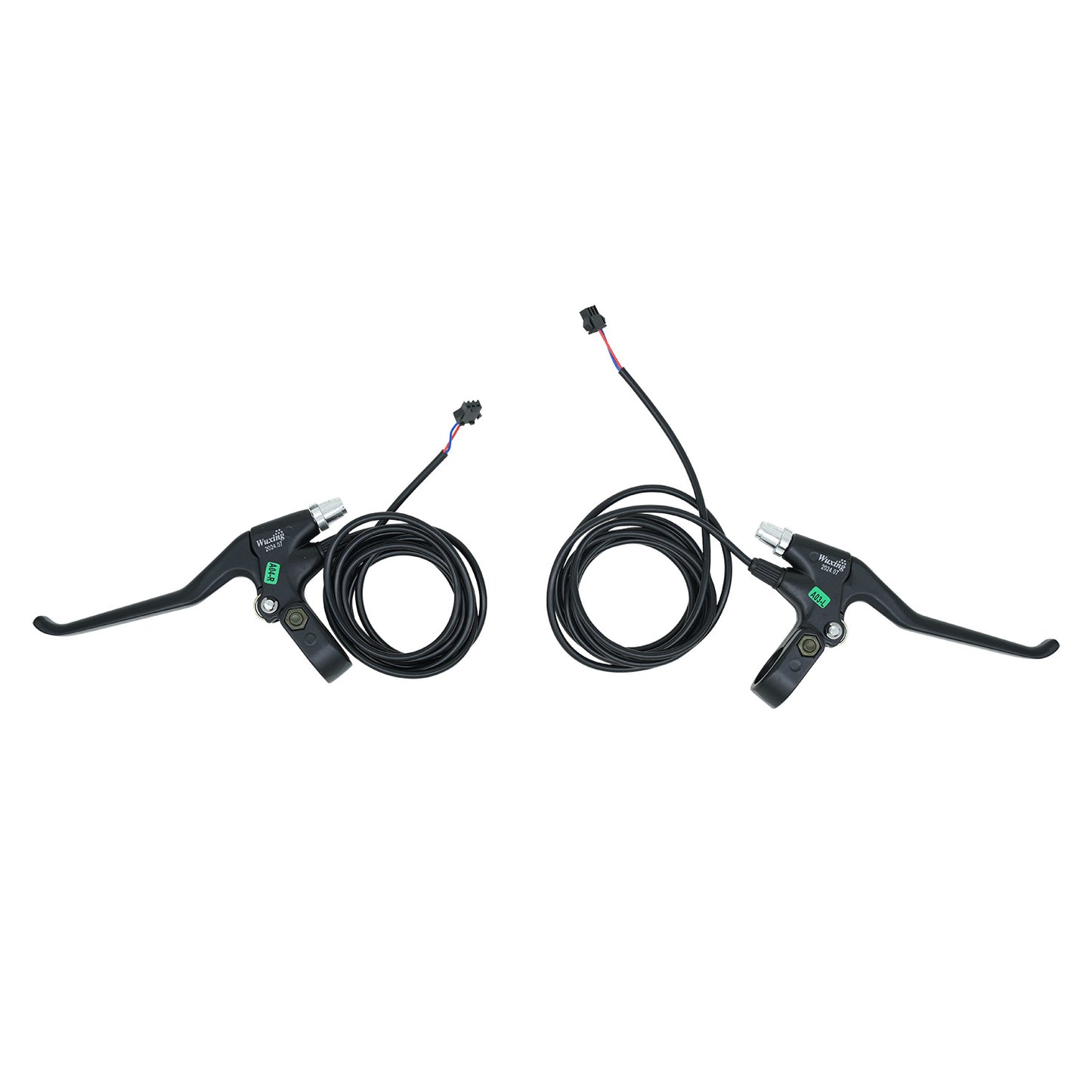

• Brake levers: Aluminum Alloy Wuxing 47PDD E-brake Lever
• Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

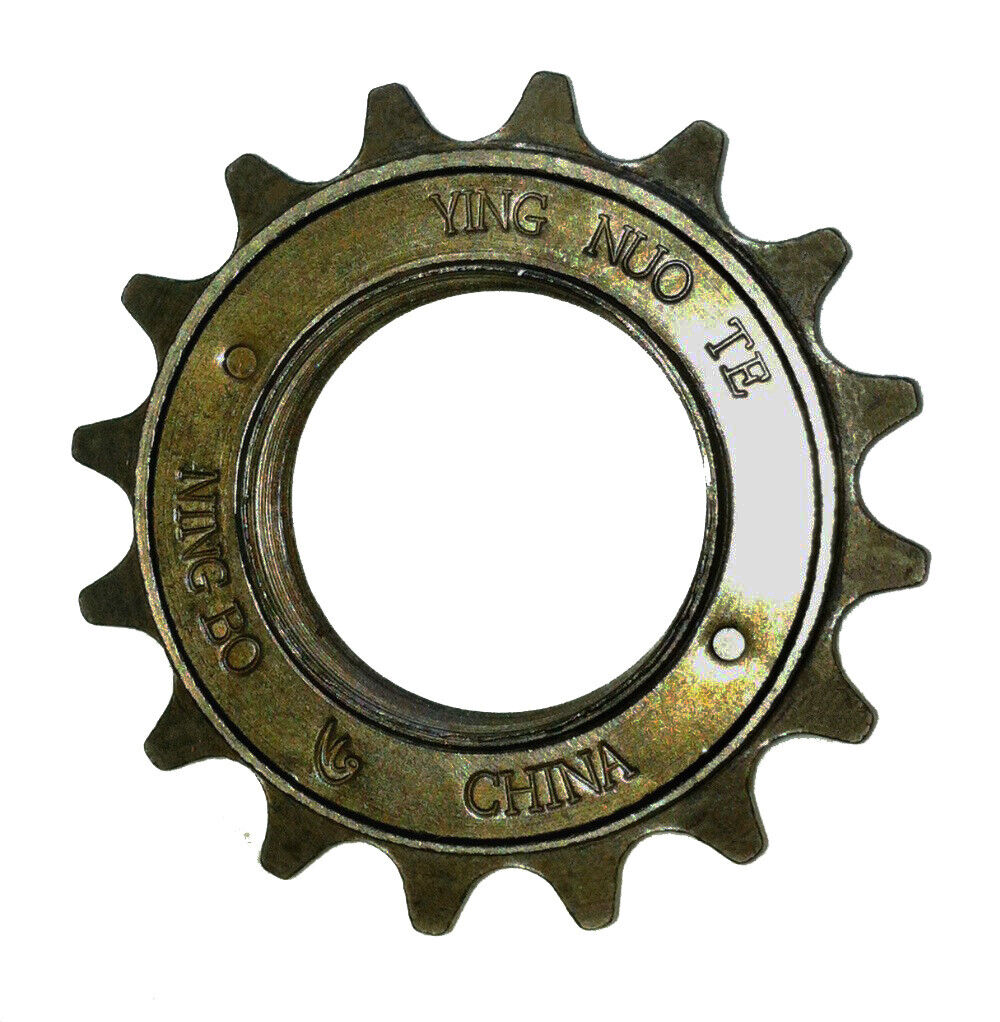

• Freewheel: 16T Tooth Single Speed Freewheel
• 12 Months Replacement Warranty on the Motor

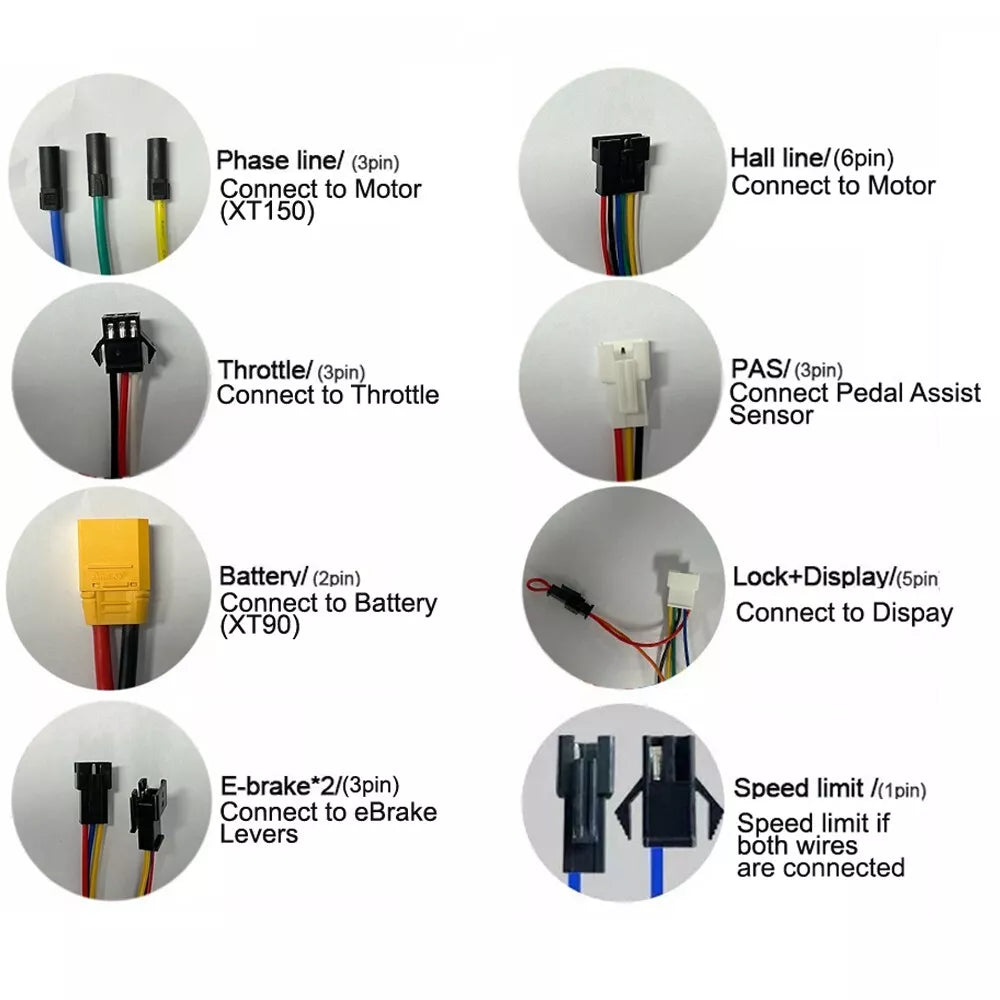

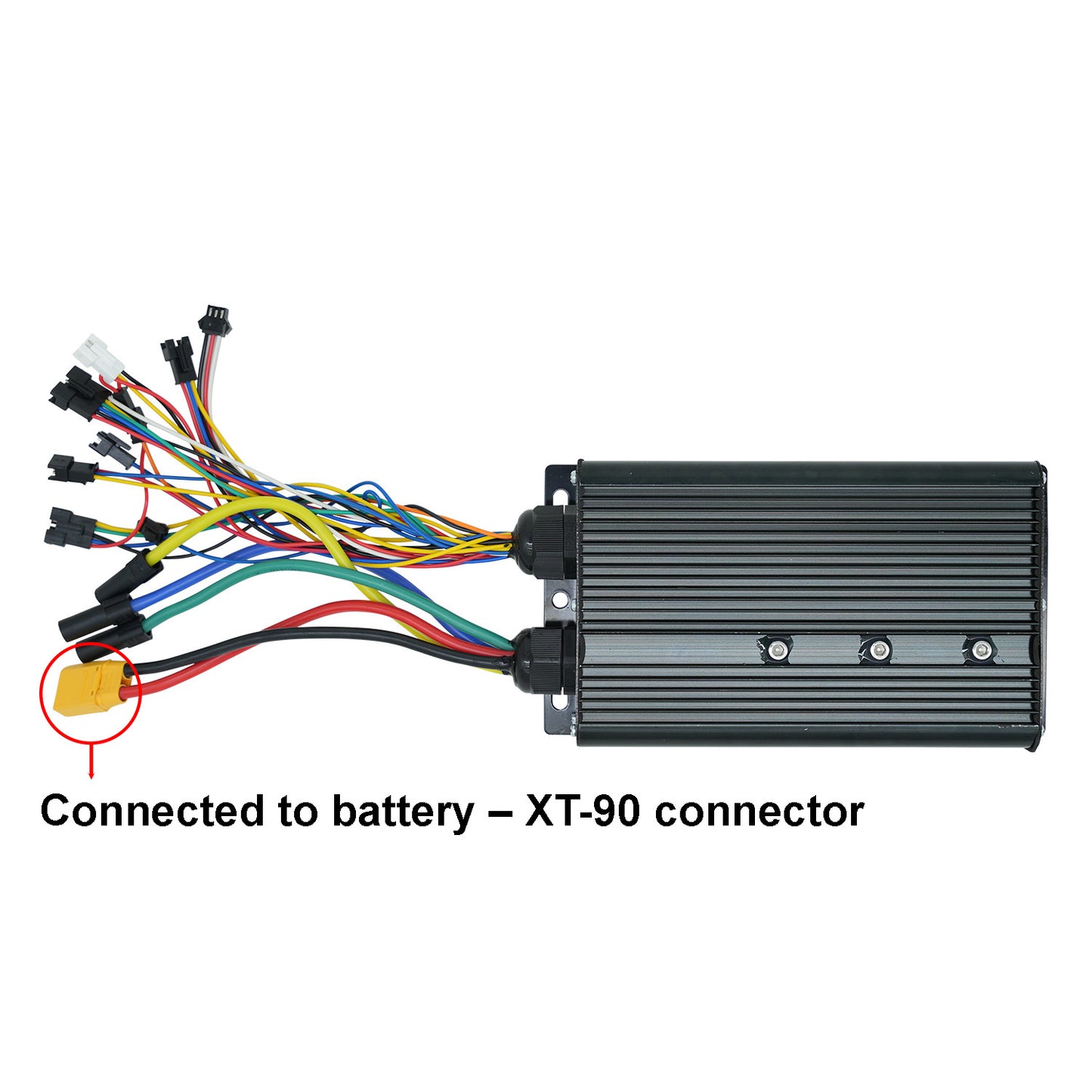

• The connector between the controller and the battery is XT-90. We currently don't have a 72V battery in stock. You will need to purchase one from elsewhere.

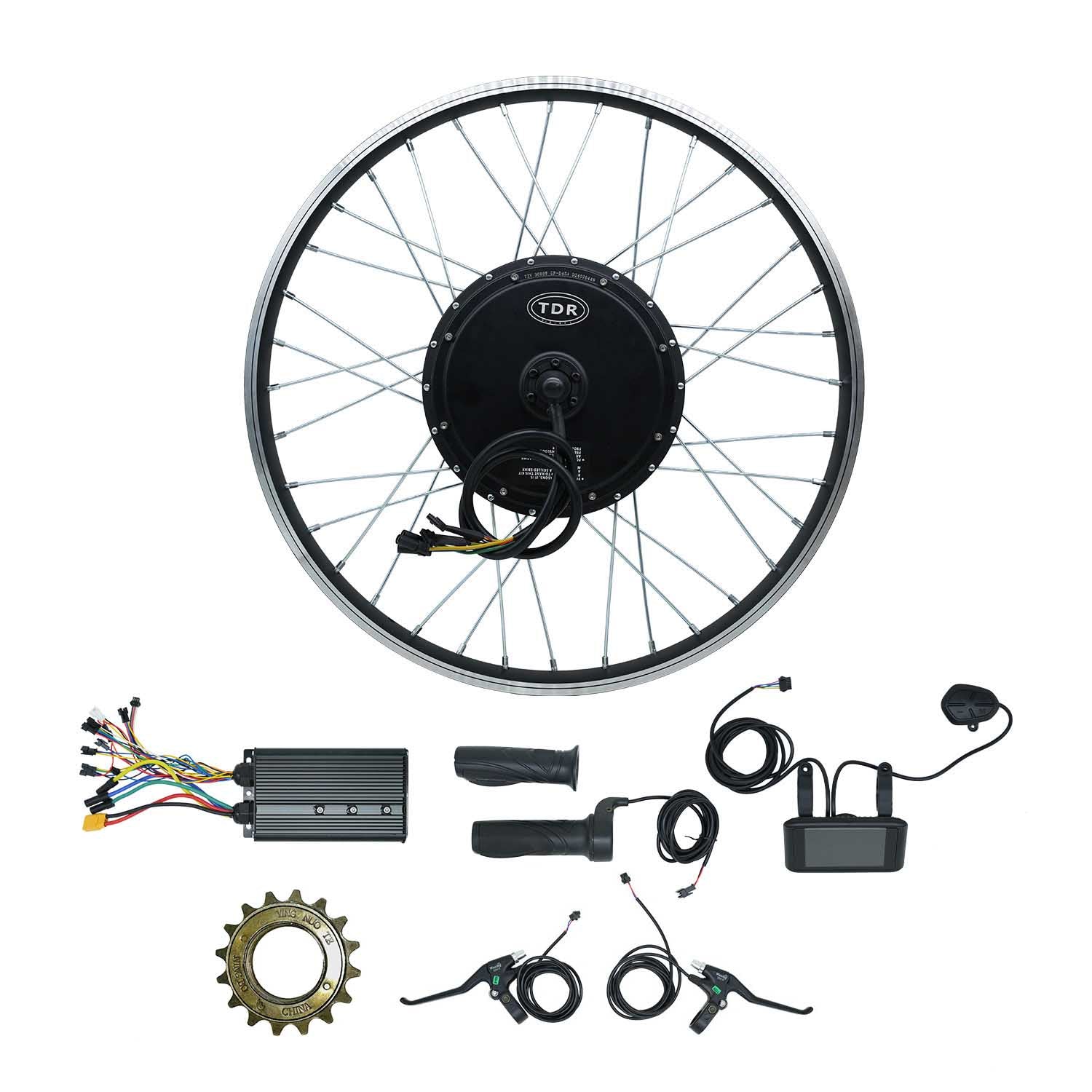

Package Include :

• 1x 72V 3000W Rear Rim Motor
• 1x Intelligent Motor Controller

• 1x Pair of E-Brake Levers

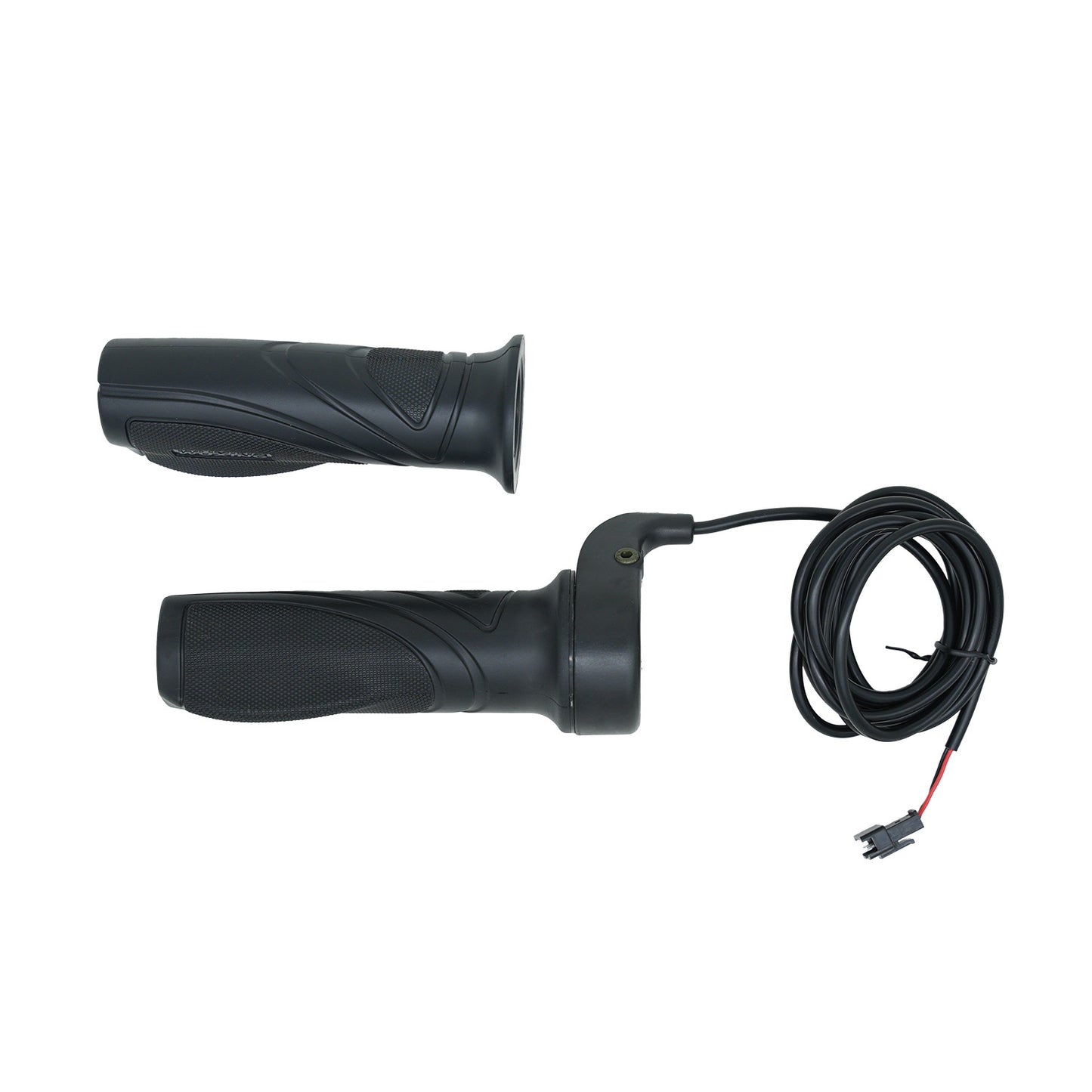

• 1x Twist Throttle
• 1x LCD Display
• 1x Cable Ties Set
• 1x Manual

• 1x 16T SPROCKET

Important Notes

• A pair of torque arms is highly recommended but is not included with this product.

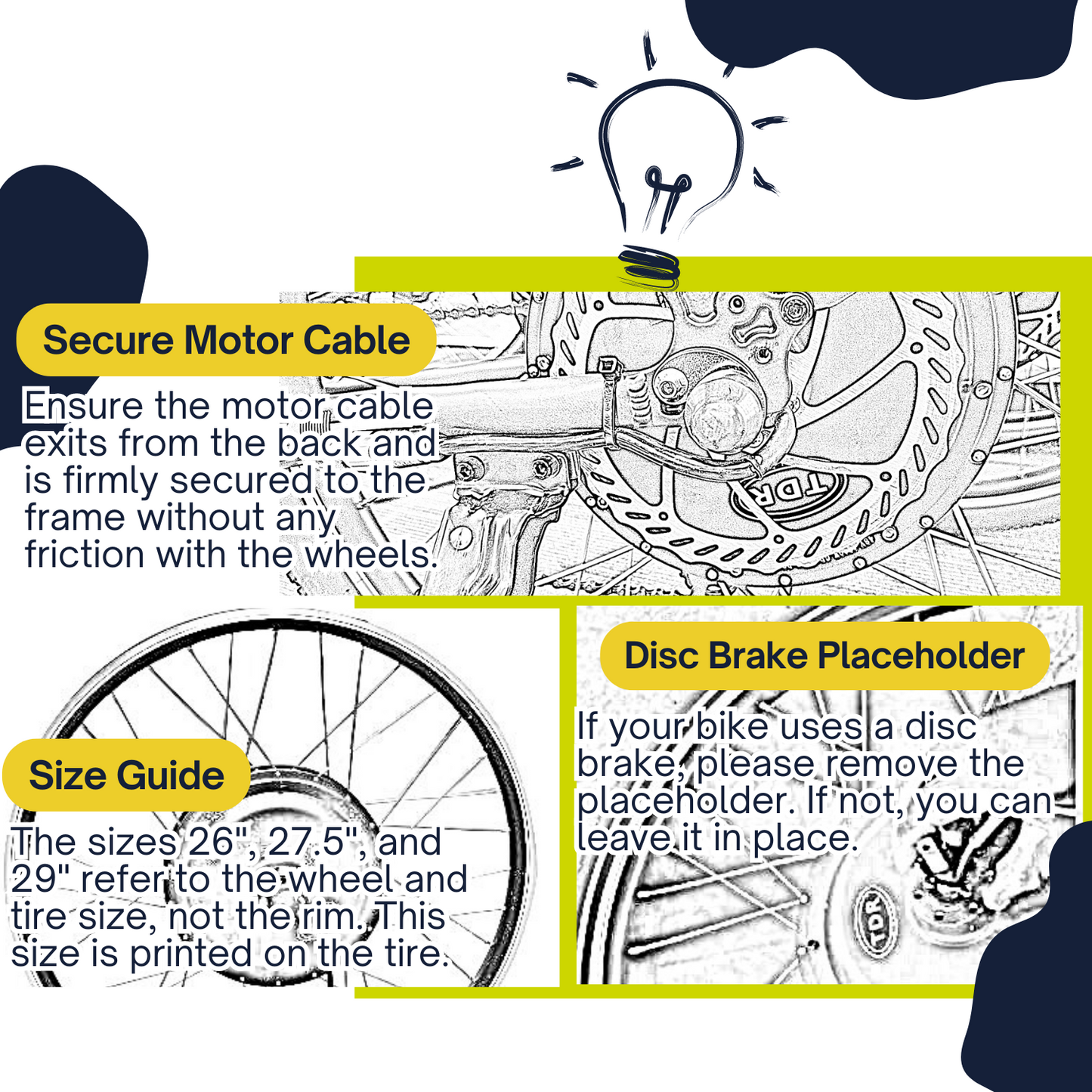

• Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

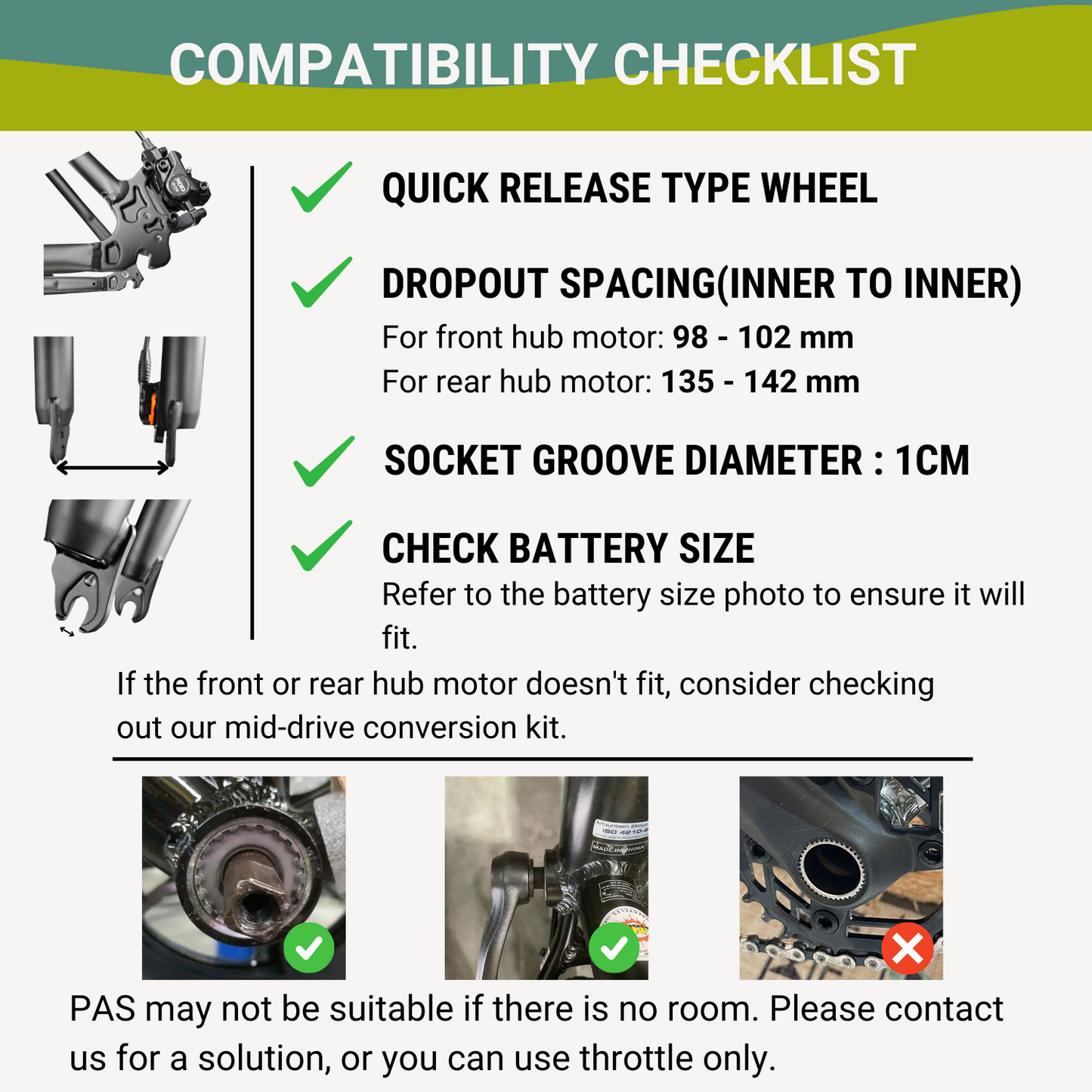

• Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
• Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
• The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 3000W Motor is not path legal, this product is recommended for off-road or private property use only.
• Please noted that the rear motor hub will only suit single speed freewheel, the freewheel is included.
• Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

UKC1 LCD User Manual

https://www.tdrmoto.com.au/pages/electric-bike-lcd-display-guide
