• For 26 Inch wheel with a width between 1.75 - 2.25 Inch
• Rim Motor: 48V 750W Brushless Gear Hub Motor
• Torque: 55 N.M
• Wiring Method: Waterproof Wire Connection System
• Maximum Speed: 50 km/h
• Display: Intelligent Colored LCD Panel Display
• Controller: Intelligent Motor Controller, the Current is 22±1A
• Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
• Rear Fork Width Requirement:135 - 142mm
• Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
• Brake levers: Aluminum Alloy Wuxing E-brake Lever
• Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
• PAS Sensor: 12 Magnets Pedal Assist Sensor
• Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
• 12 Months Replacement Warranty on the Motor & Battery

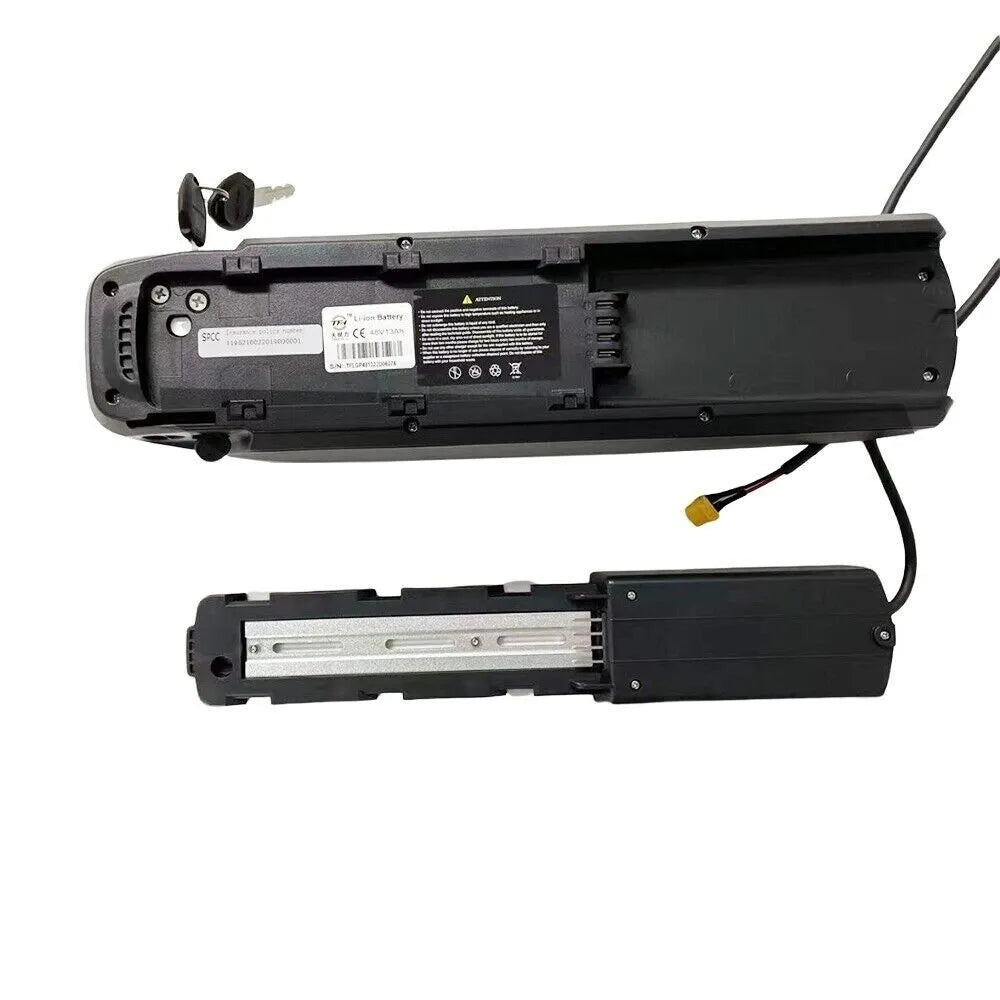

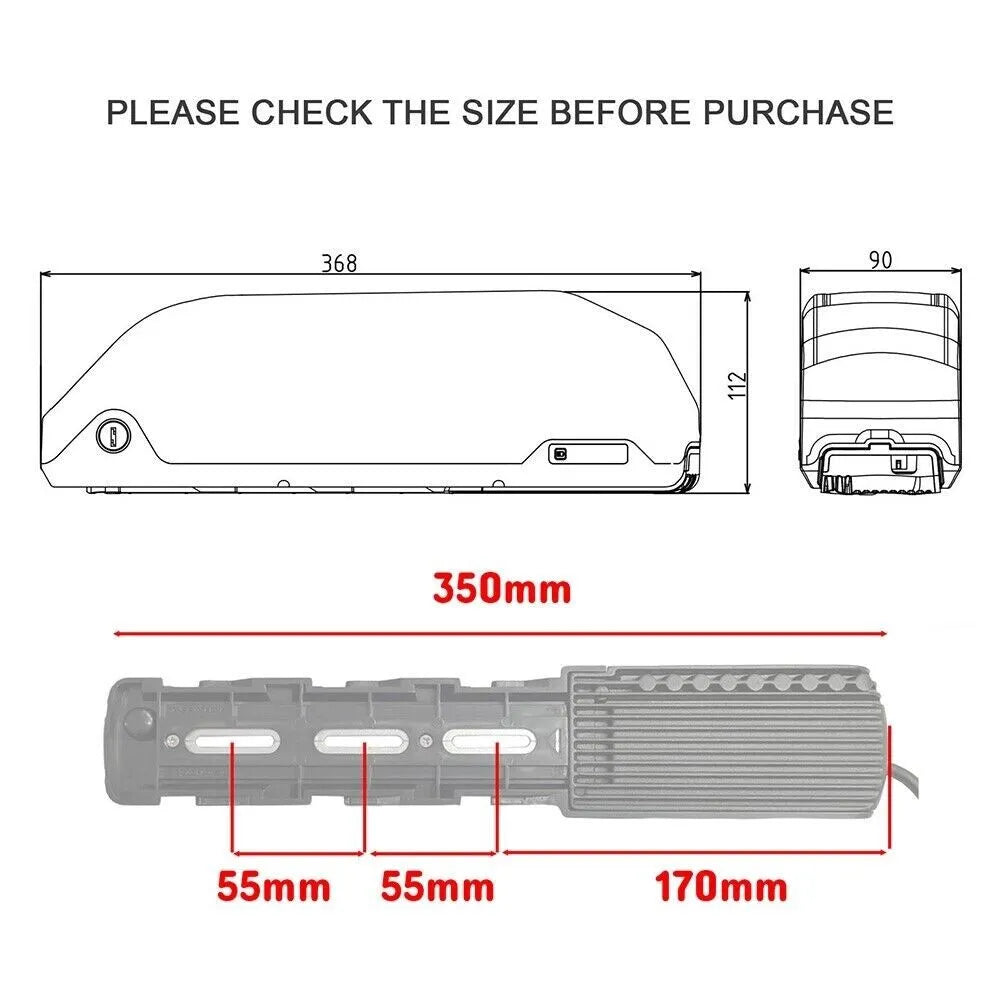

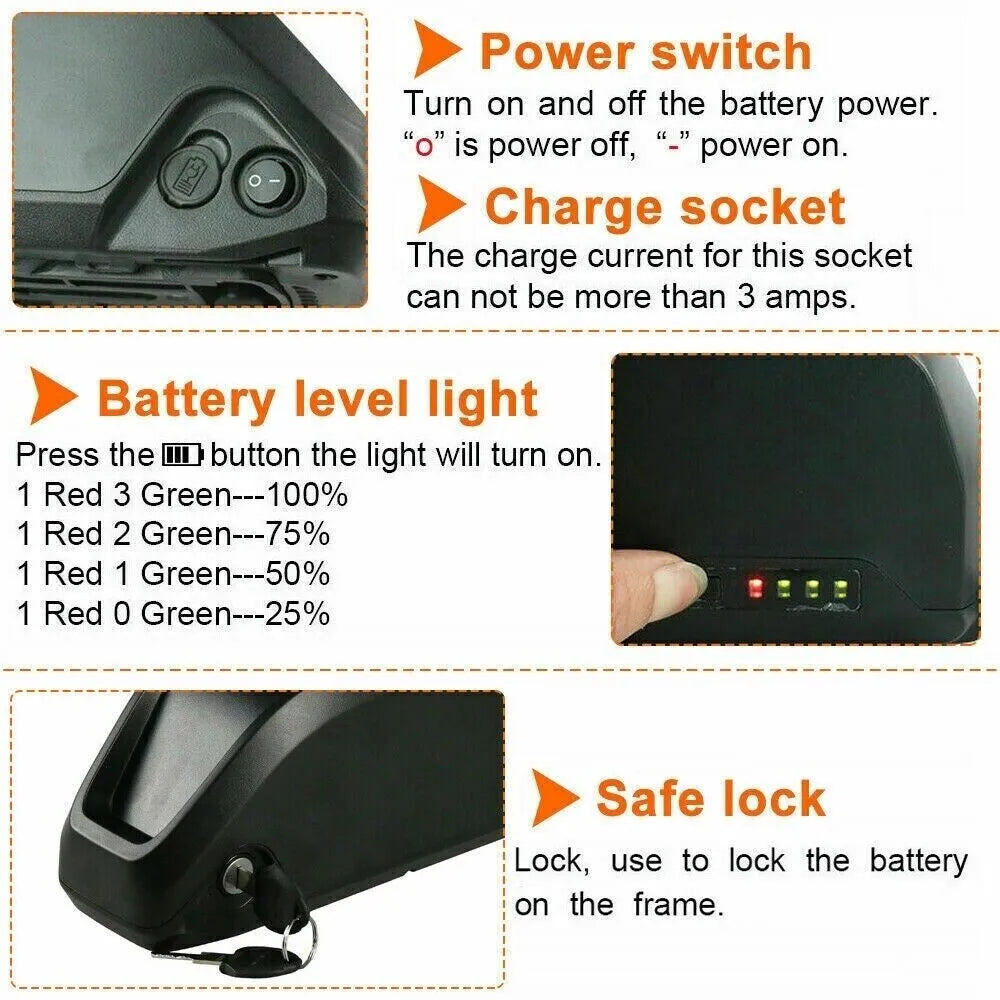

• 48V 13AH Downtube Battery with Bottom Mount
• Riding Range: Up to 50 km range with Pedal Assist Mode

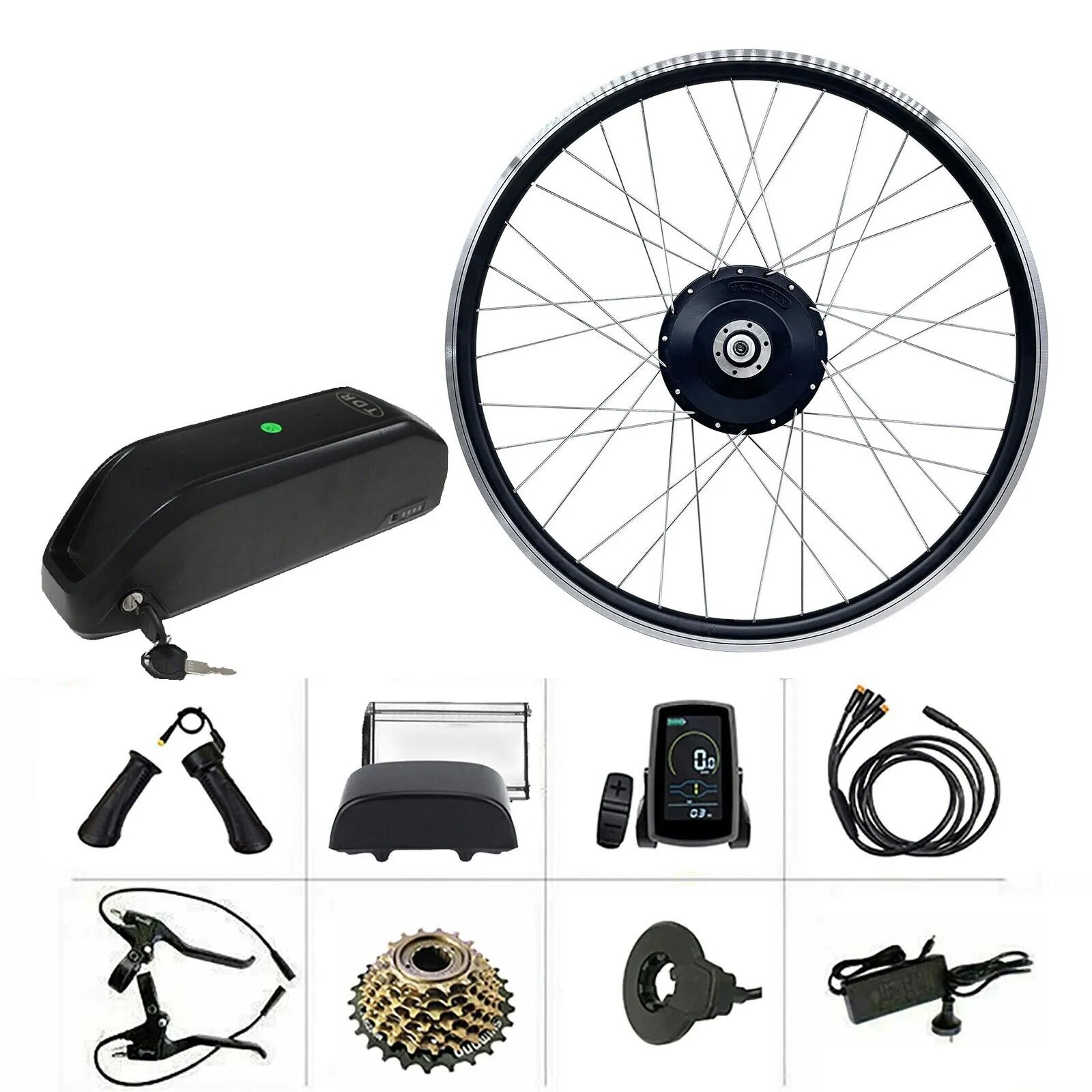

Package Include :

• 1x 48V 750W Rear Rim Motor
• 1x Intelligent Motor Controller
• 1x Controller Box
• 1x Pedal Assist Crank Sensor
• 1x Pair of E-Brake Levers
• 1x Twist Throttle
• 1x LCD Display
• 1x Cable Ties Set
• 1x Manual
• 1x 6 or 7 Speed Freewheel

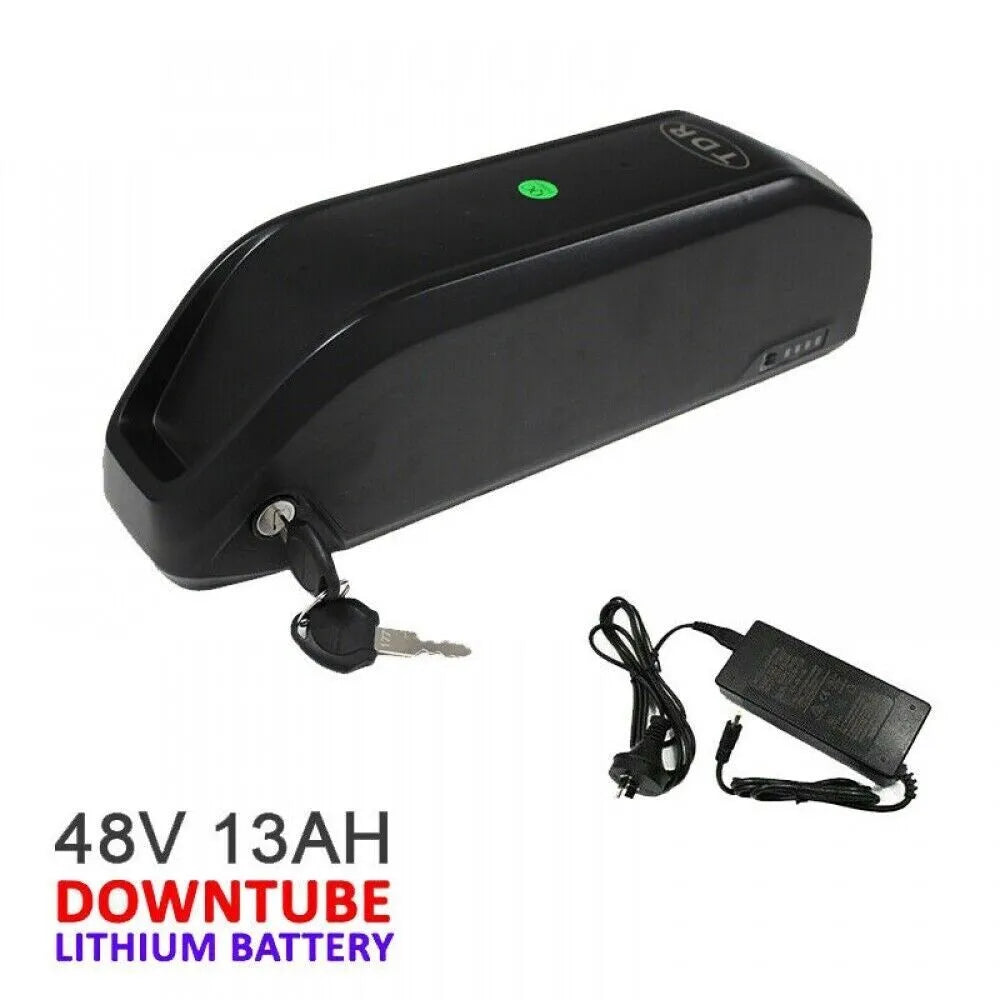

• 1 x 48V 13AH Downtube Battery & Charger Set

Important Notes

• Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
• Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
• Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
• The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
• Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
• Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
