48V 500W KT Controller 22A Extra Long Cable & KT LCD8 Display For Rear Hub Brushless Motor eBike Kit

Description:

• KT48ZWSRM-GP1F21 Controller & LCD8 Display for 48V 500W EBike Convention Kit with P6 function
• eBike Controller

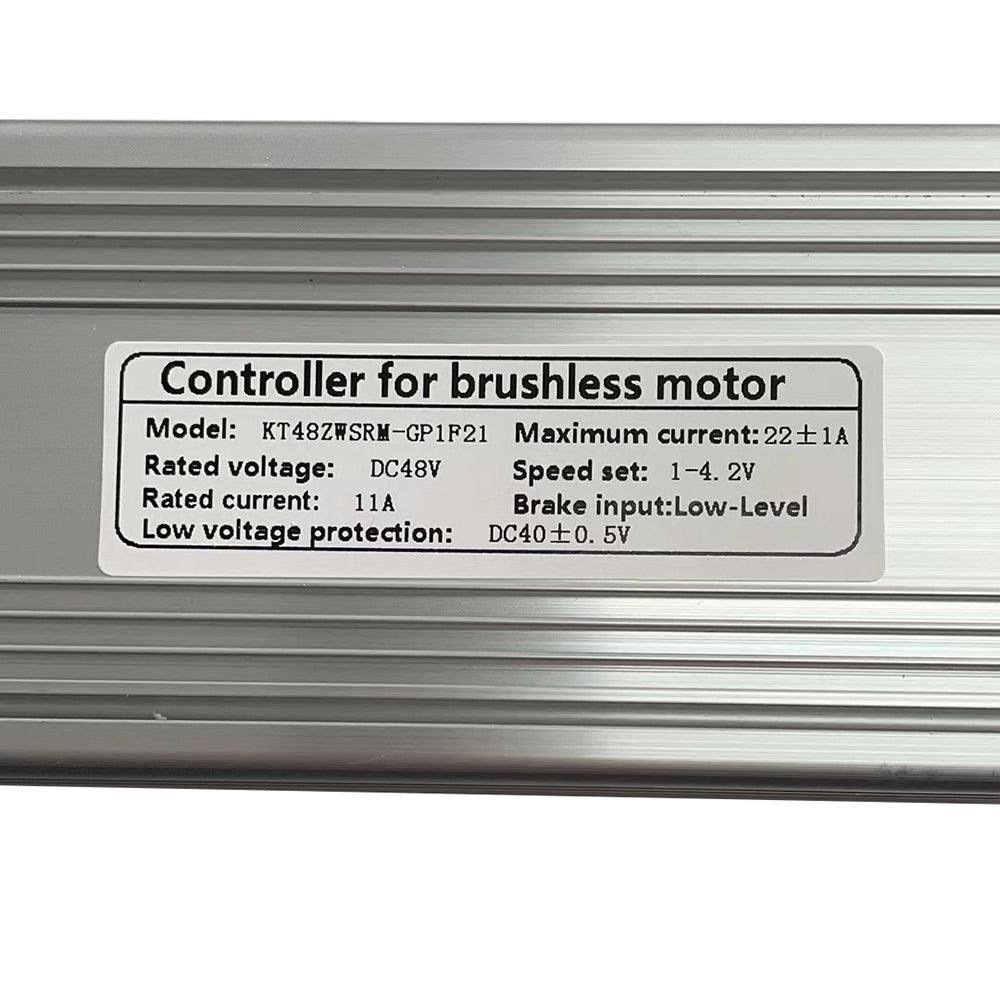

• Model: KT48ZWSRM-GP1F21
• Maximum Current: 22A
• Rated Current: 11AH
• Rated Voltage: DC48V

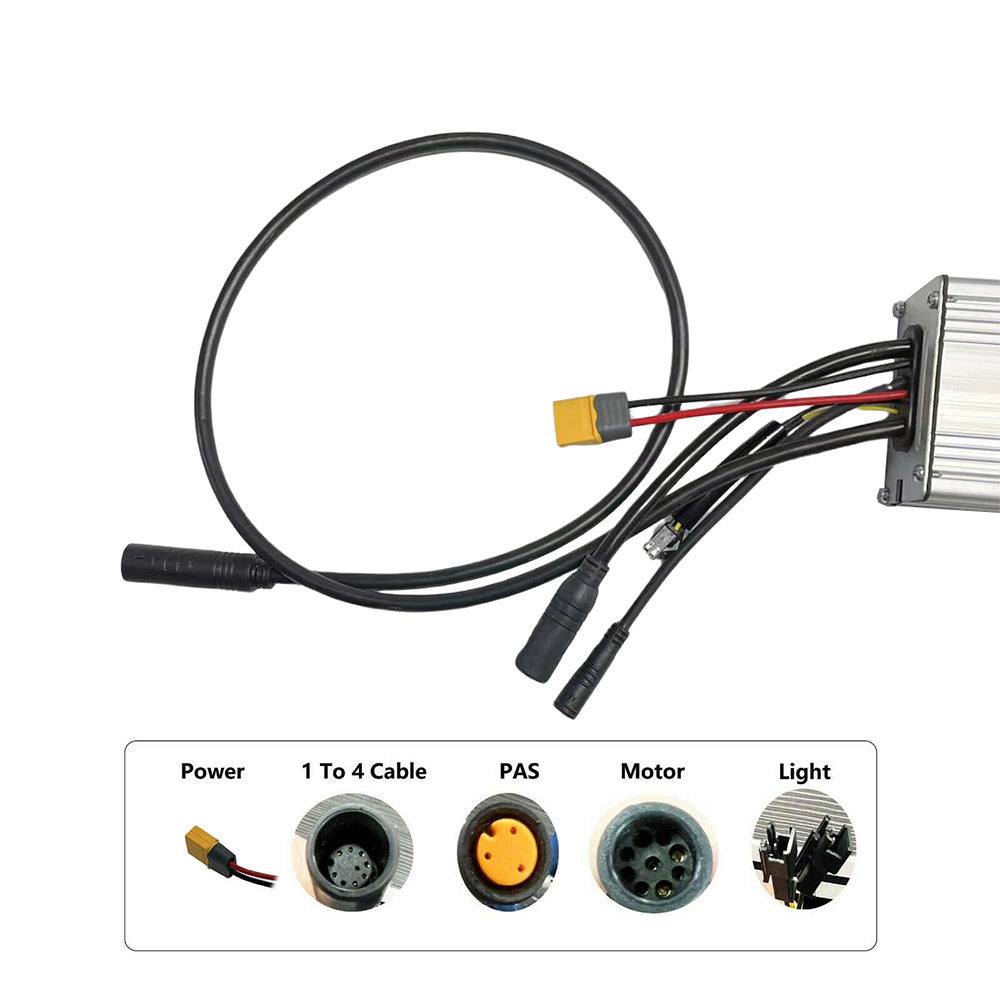

Connectors:

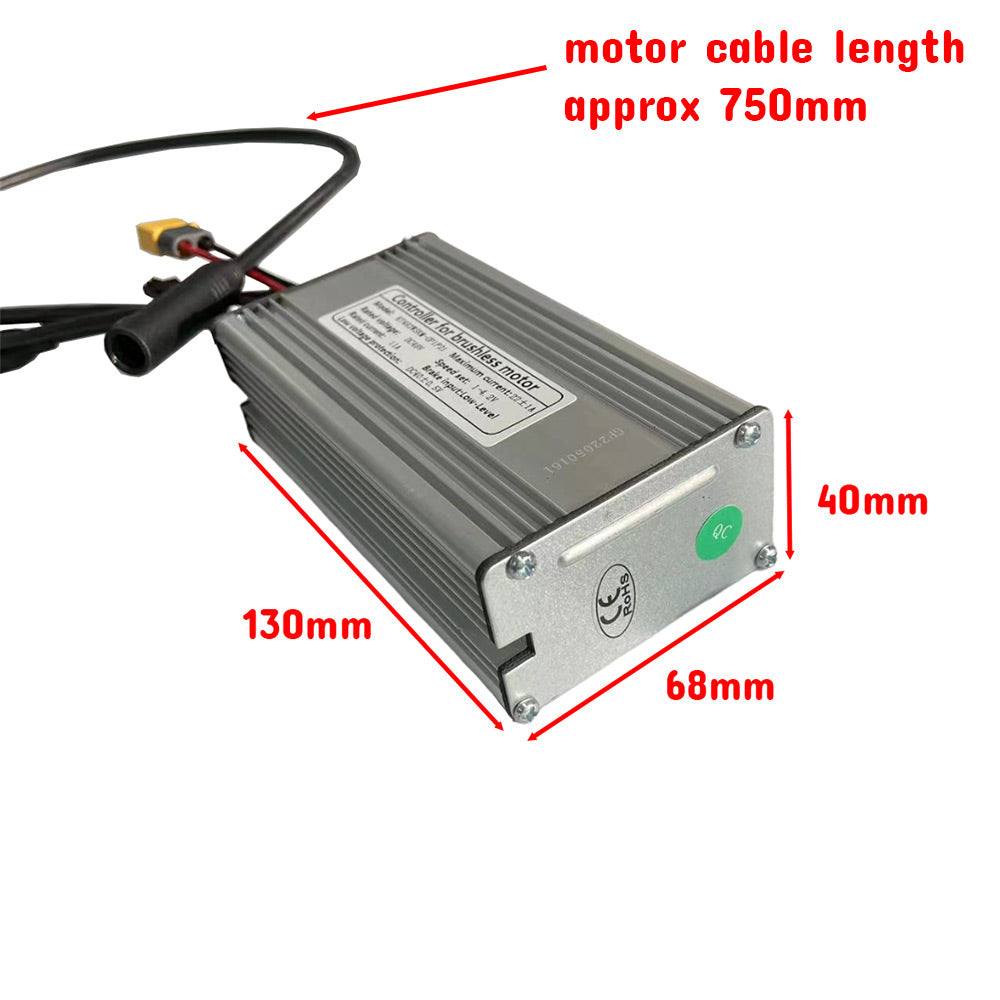

• motor (9 pins waterproof plug) 750mm cable
• Power
• PAS (3pin waterproof plug)
• 1 to 4 cable (9 pins for throttle, e-bike, display)
• KT controller is only compatible with KT display (same communication protocol)

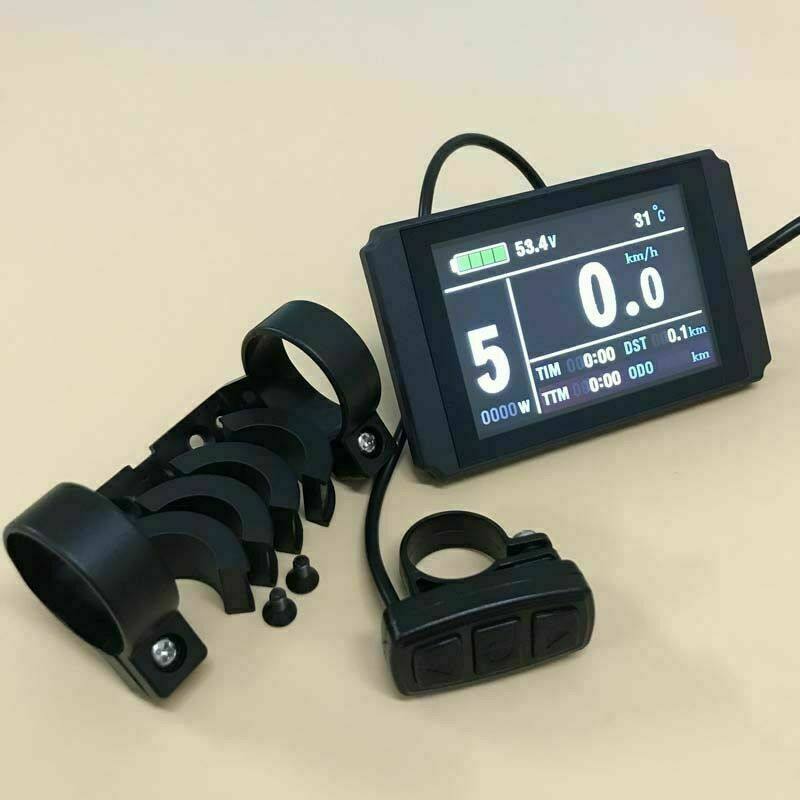

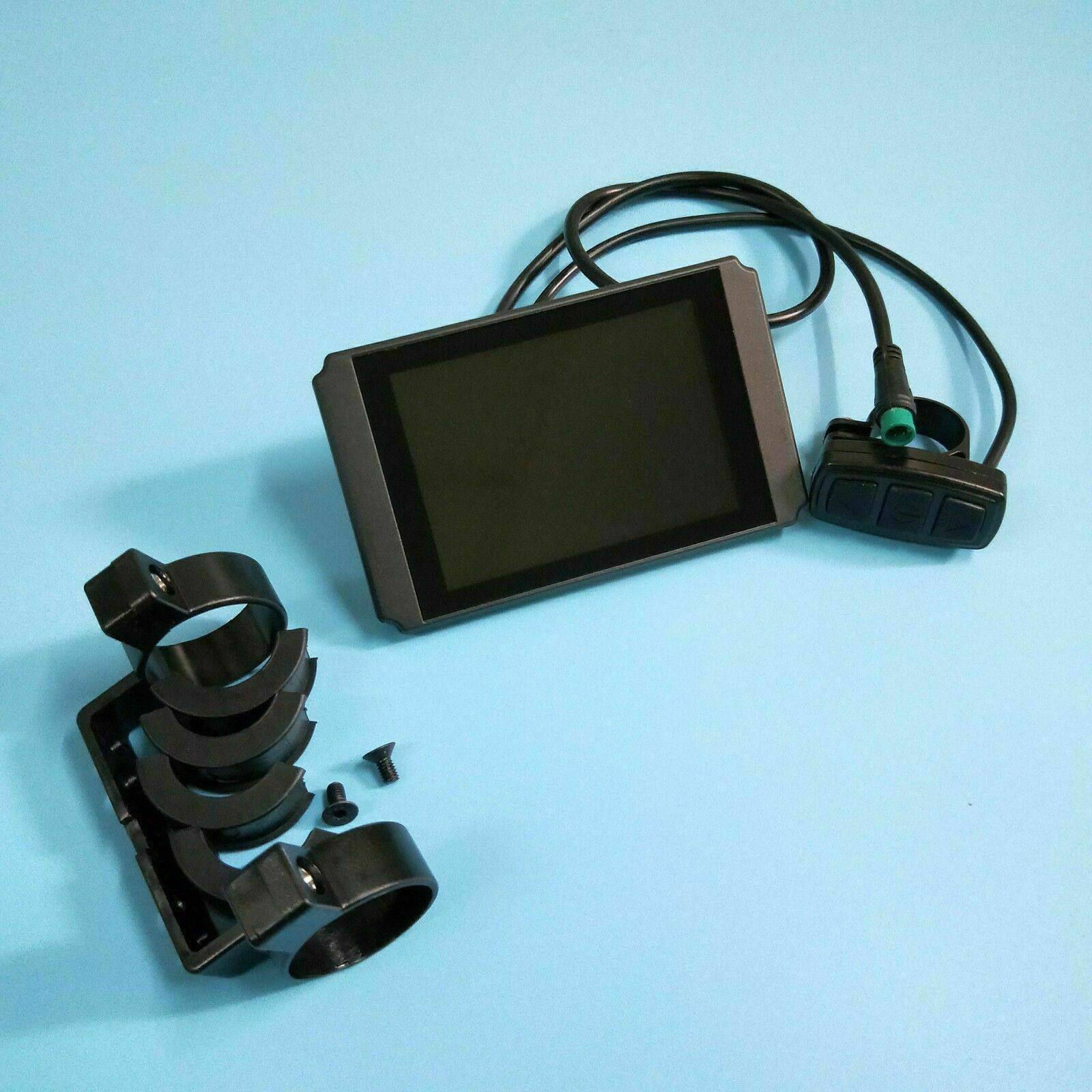

Display:

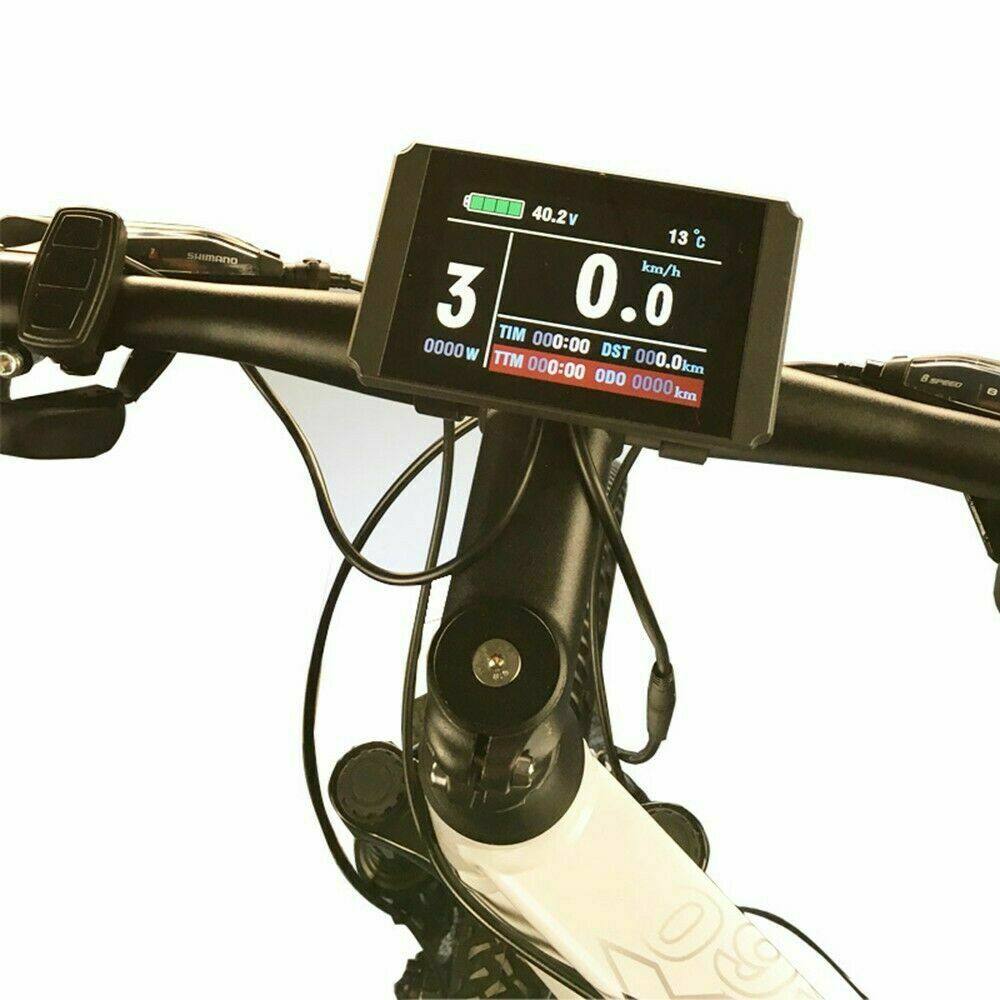

• Data display: it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters
• Intelligent power: a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage
• Stalls setting: multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on
• Parameter setting: with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment
• Data view: Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding
• Cadence function: In the assistance mode, the display will show the pedal’s Revolutions Per Minute (RPM);
• Cruise and constant speed: With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed
• Night driving: With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night
• Password setting: With three-bit of power-on password setting
• Automatically prompt: For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection
• Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly
• Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient

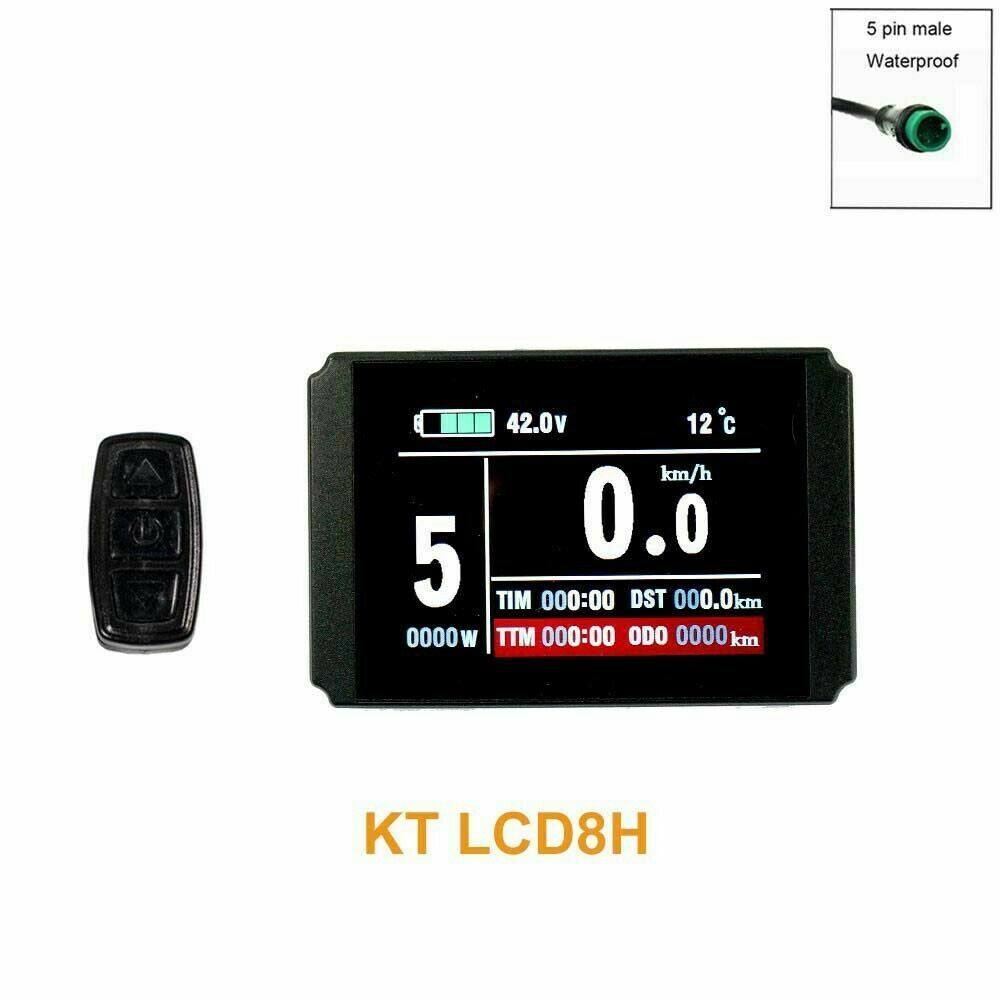

• 5 pins waterproof plug

Important notes:

• This controller can work with electric bicycles only, not suitable for an electric scooter.
• Please check your original parts, wiring before purchase to avoid any issues.
• Please make sure you have P6 function, otherwise will not work.
• 1 to 4 cable not included.

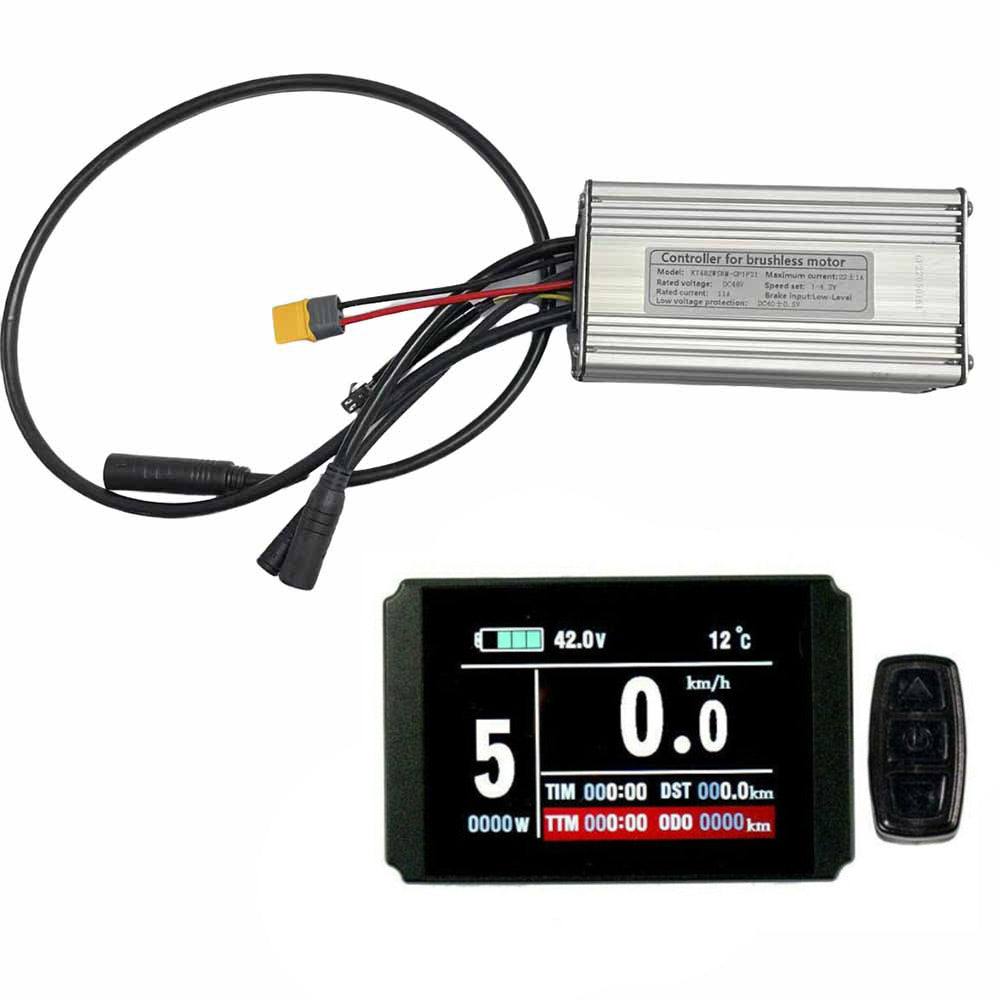

Package includes:

• 1 x LCD Display
• 1 x KT 22A controller
