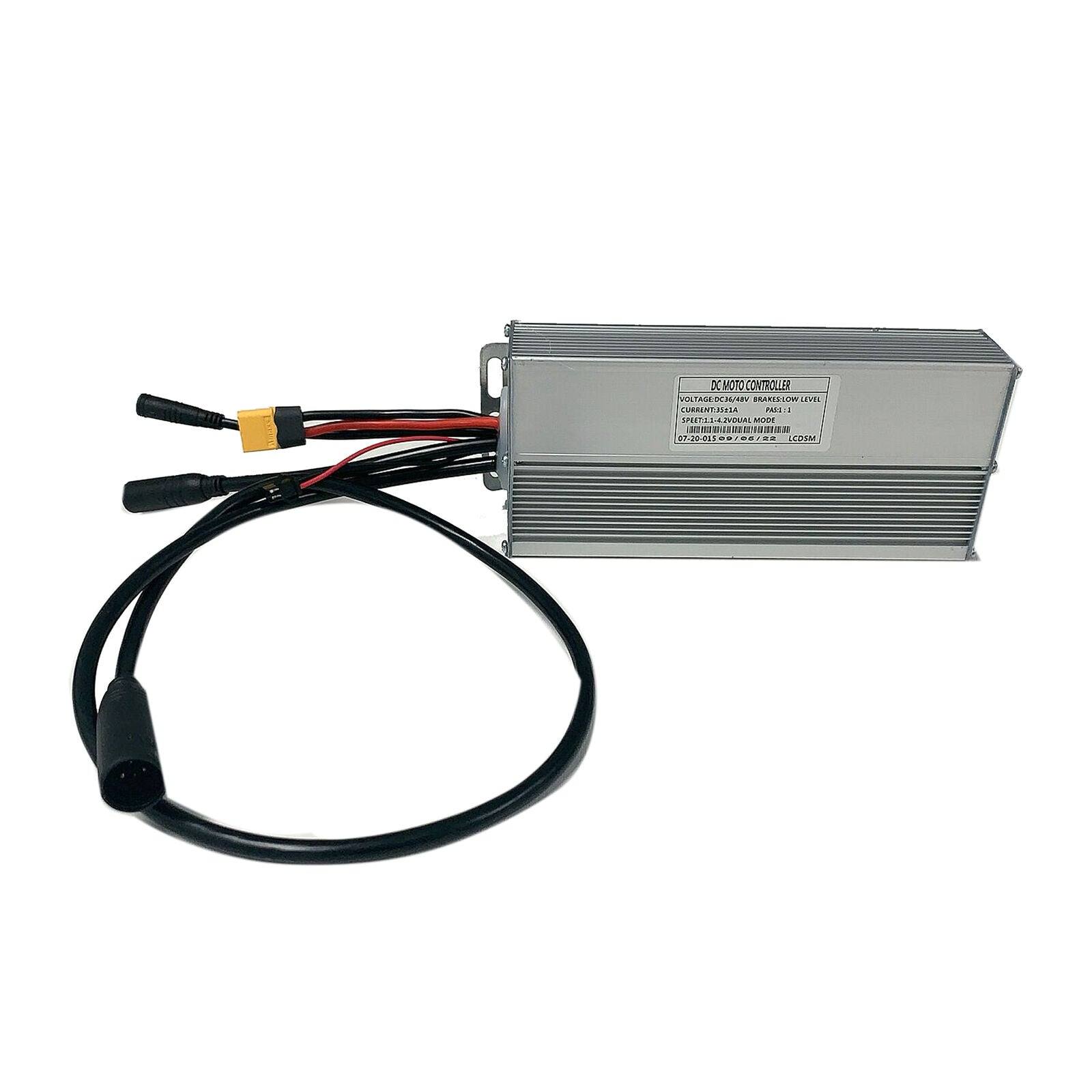

48V 35A eBike Controller for 1000w 1500w Electric Bicycle with Brushless Motor

48V 35A eBike Controller for 1000w 1500w Electric Bicycle with Brushless Motor

SKU:

$89.99
$99.99 $89.99
10% off Sold out
Tax included. Shipping calculated at checkout.
  • Controller dimension in mm :  185*42*85 (l*w*h)
  • Weight: 650g
  • Motor cable length: about 730mm
  • 15mosfets
  • Sine Wave
  • Maximum current: 35±1A
  • Rated voltage:DC/48V
  • Speed set:1.1 - 4.2V DUAL MODE
  • Rated current:17A
  • Brake input :Low-Level
  • PAS: 1:1
  • Low voltage protection: DC40±0.5V

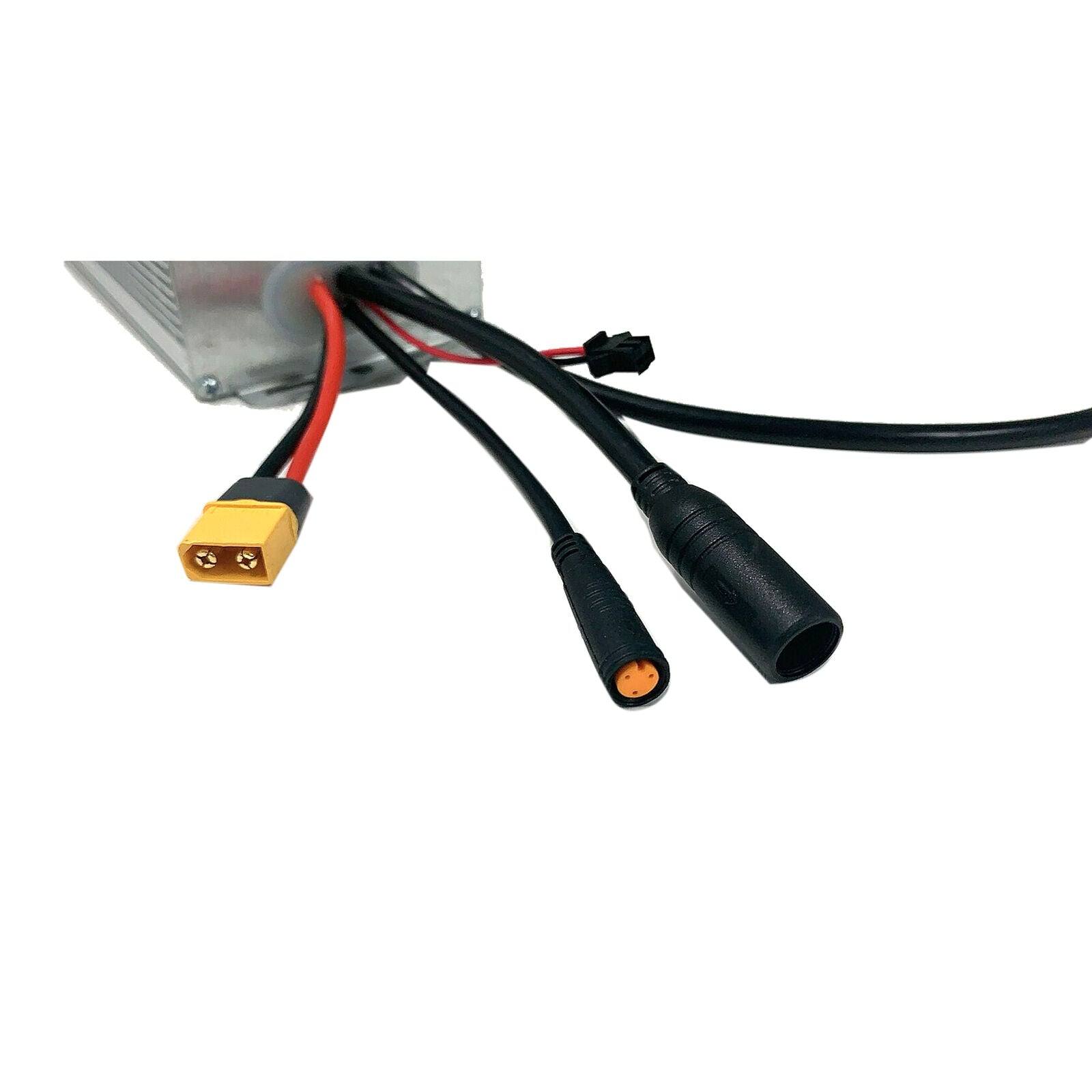

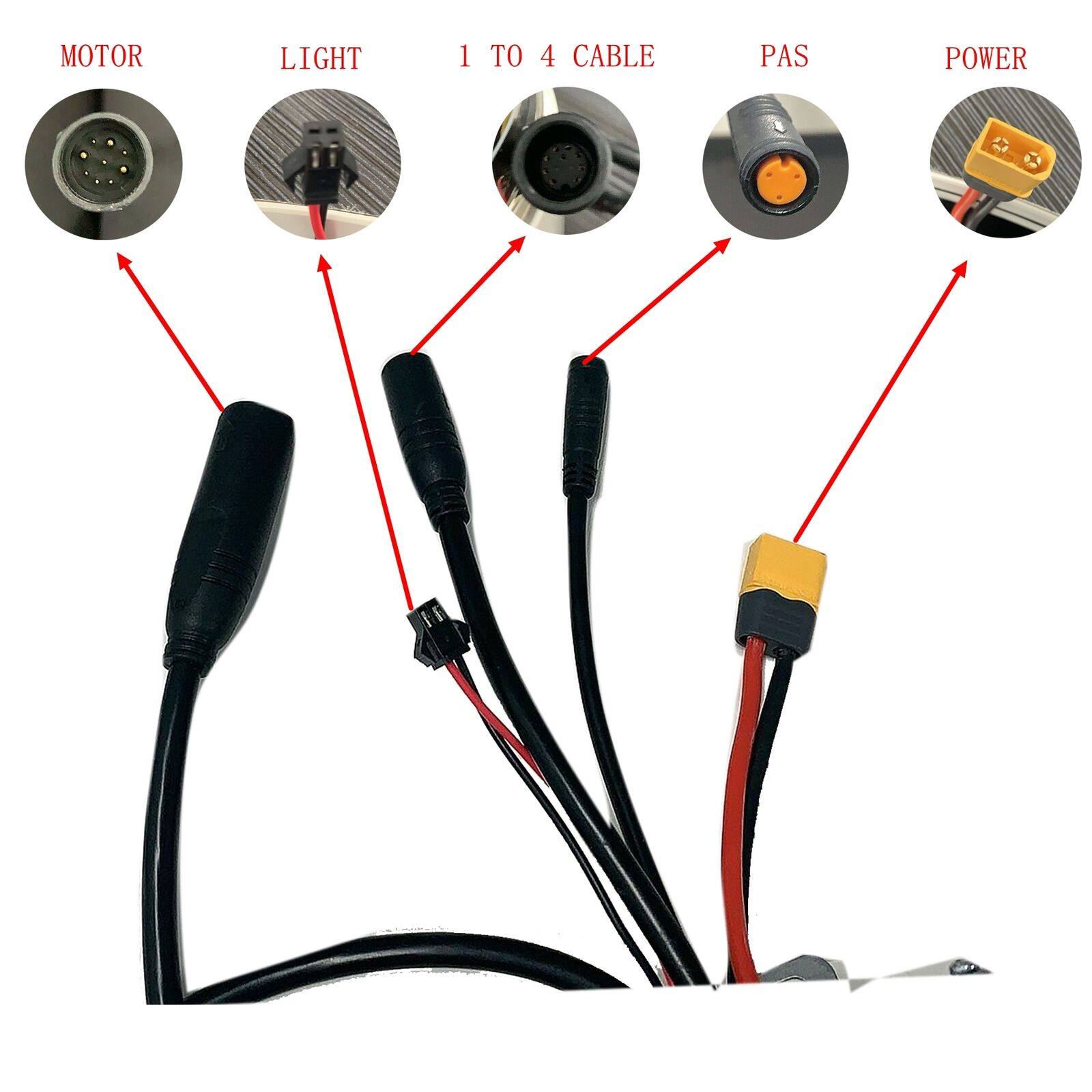

Connectors：
  • motor (9 pins waterproof plug )
  • Power connector  xt60
  • PAS (3 pins waterproof plug)
  • 1 to 4 cable(9 pins for throttle, e-bike, display)
  • Front light connector - suitable for light less than 80MAH
