For 700C / 28 Inch / 29 Inch

• 700C rear wheel with a width between 700*35C to 700*55C
• 28 Inch rear wheel with a width between 1.75 to 2.25 Inch
• 29 Inch rear wheel with a width between 1.75 to 2.25 Inch

Specifications

• Rim Motor: 48V 500W Brushless Gear REAR Hub Motor
• Torque: 55 N.M

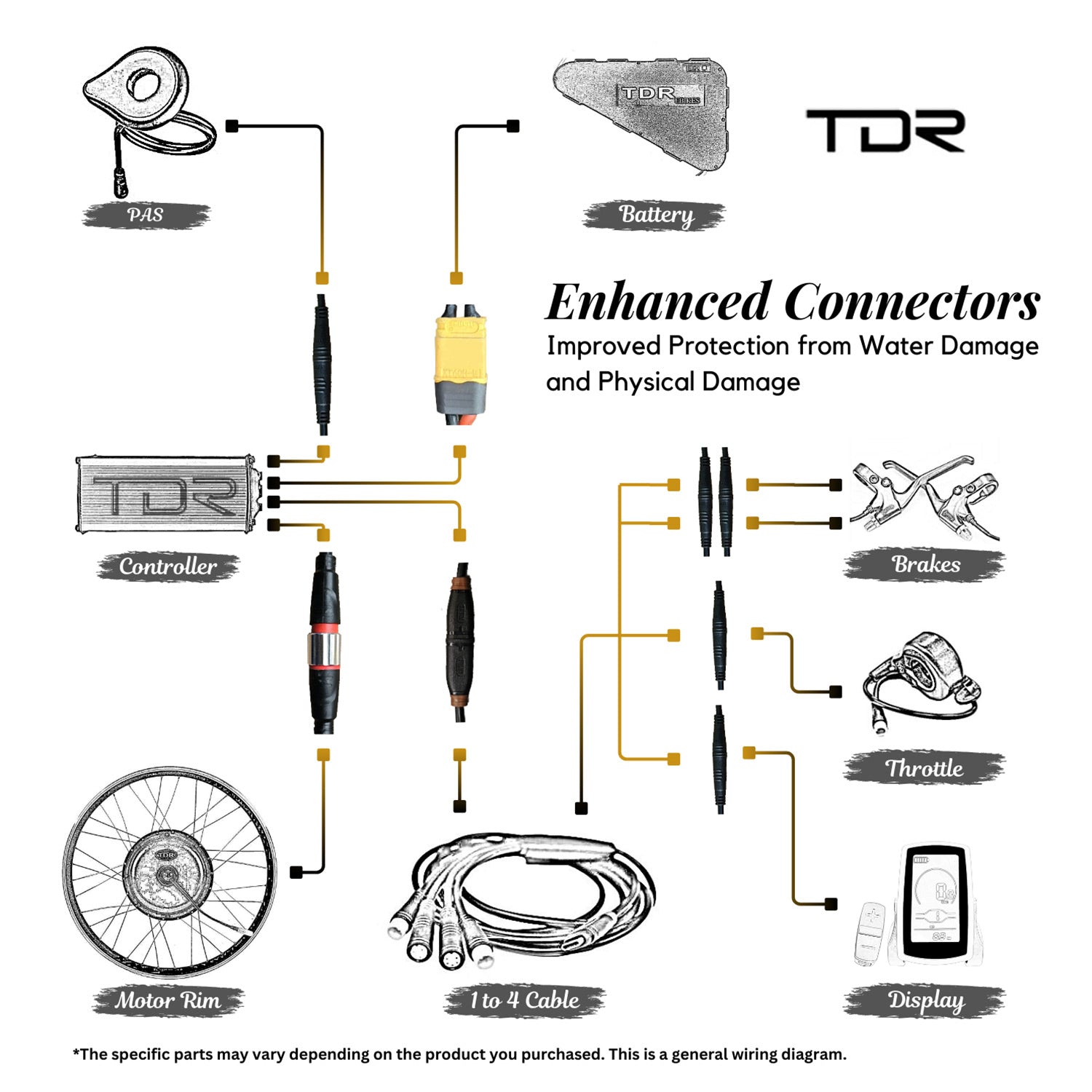

• Wiring Method: Waterproof Wire Connection System
• Maximum Speed: 40 km/h
• Display: Intelligent Colourful LCD Panel Display
• Controller: Intelligent Motor Controller, the Current is 22±1A
• Riding mode: Thumb Throttle Electric Assist Mode, Pedal Assist Mode
• Rear Fork Width Requirement:135 - 142mm
• Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
• Brake levers: Aluminium Alloy Wuxing E-brake Lever
• Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
• PAS Sensor: 12 Magnets Pedal Assist Sensor
• Riding Range (Depend on Battery): 48V 15AH (Up to 60 km with Pedal Assist Mode), 48V 20AH (Up to 80 km with Pedal Assist Mode), 48V 20AH (Up to 80 km with Pedal Assist Mode), 48V 28.8AH (Up to 110 km with Pedal Assist Mode)
• 12 Months Replacement Warranty on Motor & Battery (If Applicable)

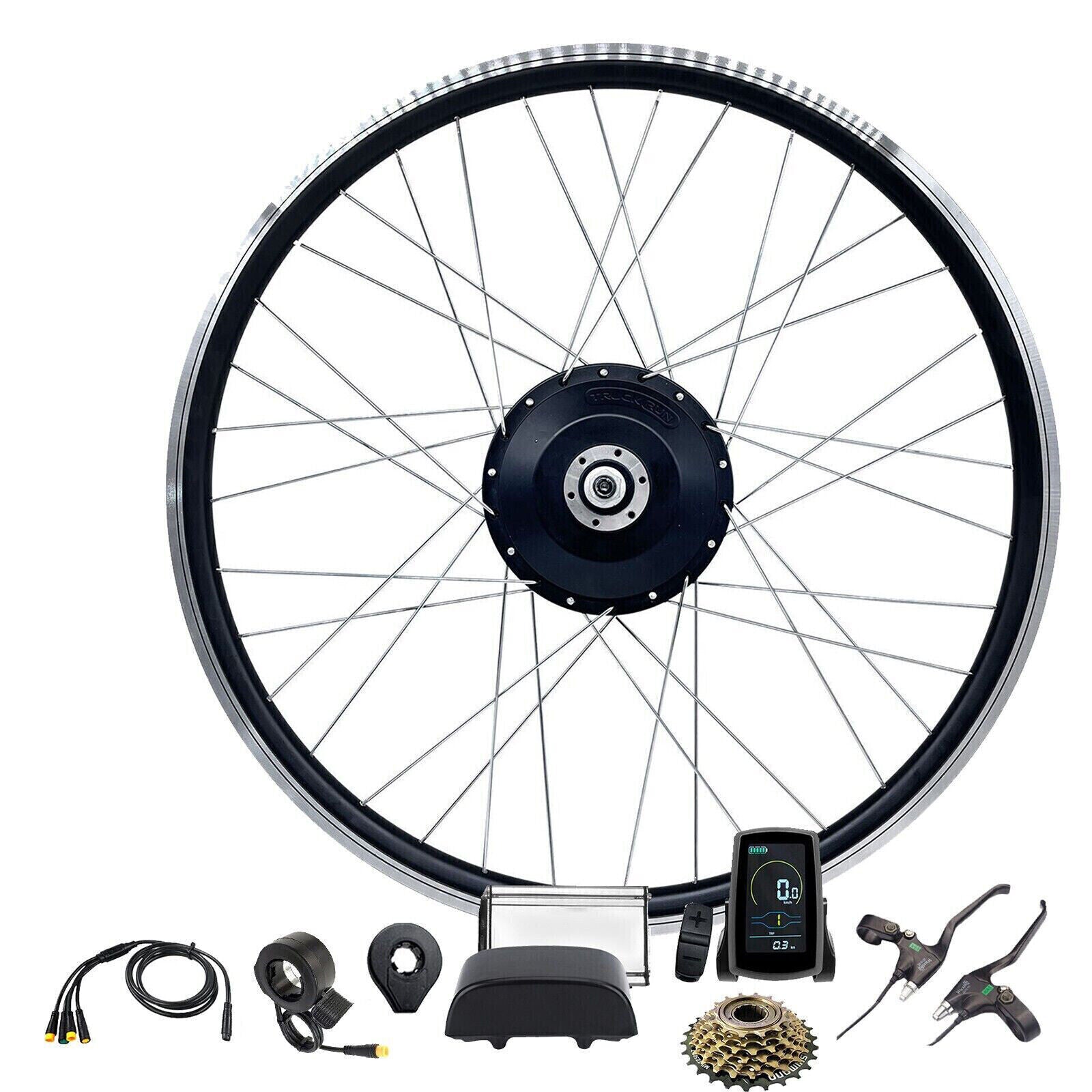

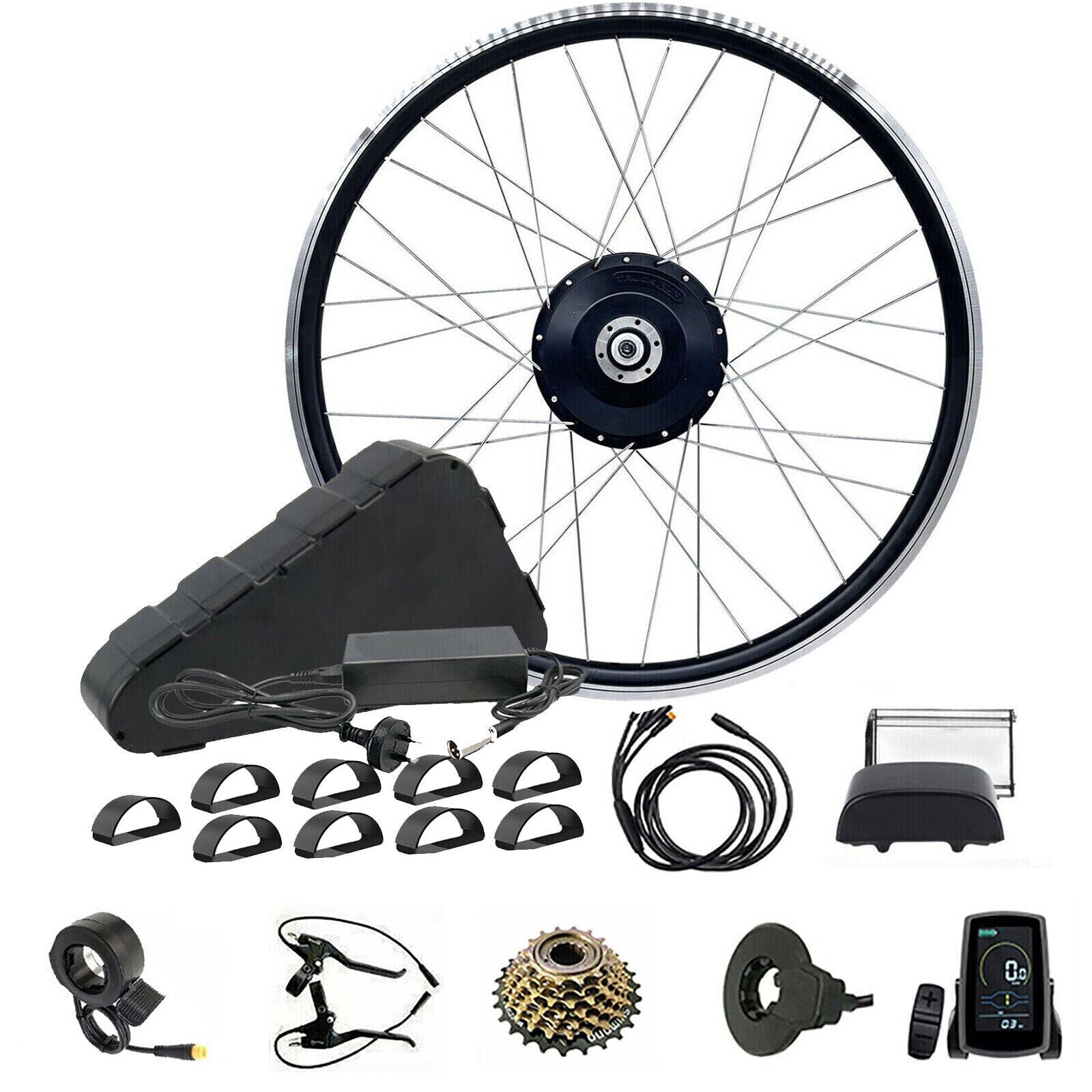

Package Include :

• 1x 48V 500W Rear Rim Motor
• 1x Intelligent Motor Controller
• 1x Controller Box
• 1x Pedal Assist Crank Sensor
• 1x Pair of E-Brake Levers
• 1x Thumb Throttle
• 1x LCD Display
• 1x Cable Ties Set
• 1x 7 Speed Freewheel
• 1x Manual
• 1x Battery (Based on your Option)

Important Notes

• Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

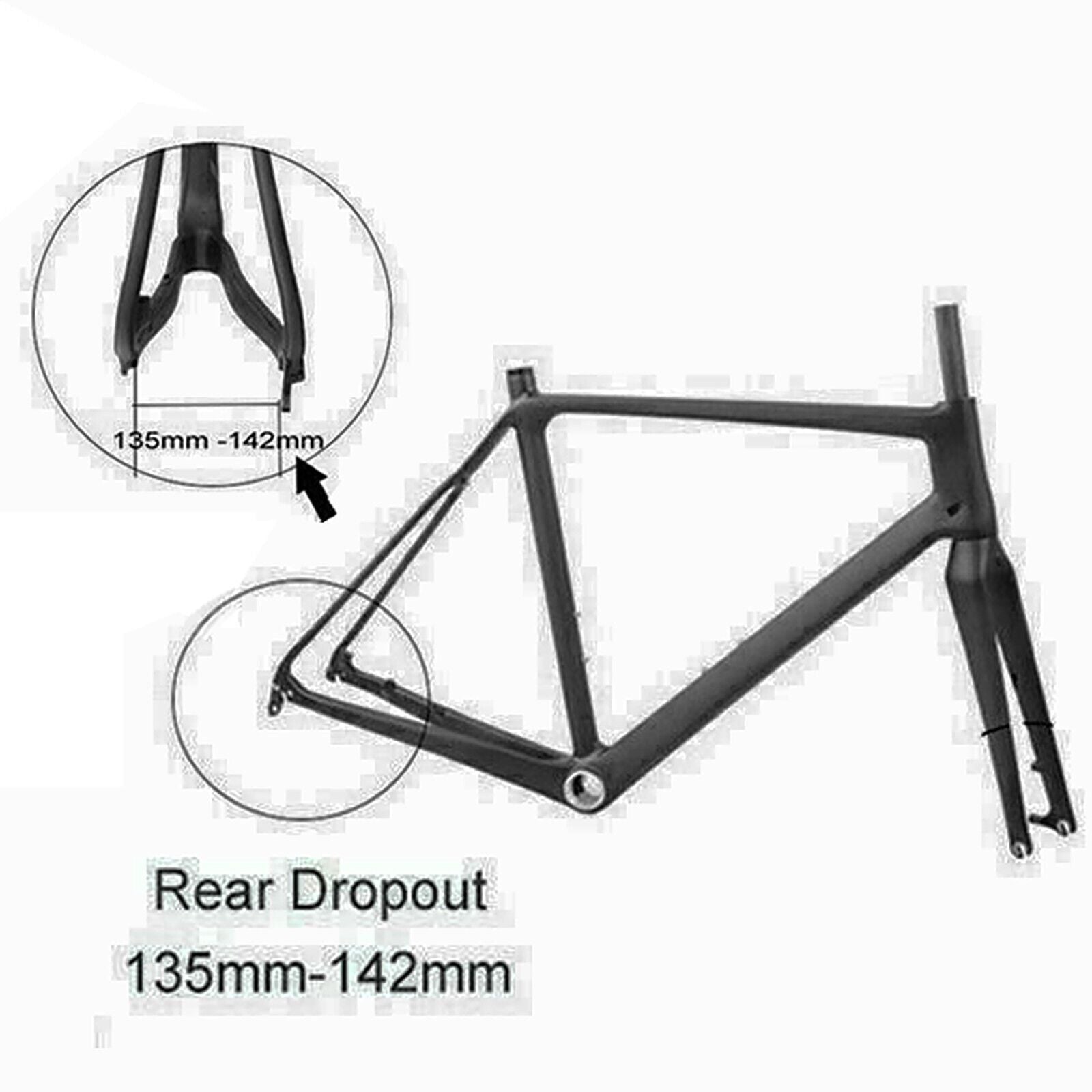

• Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.

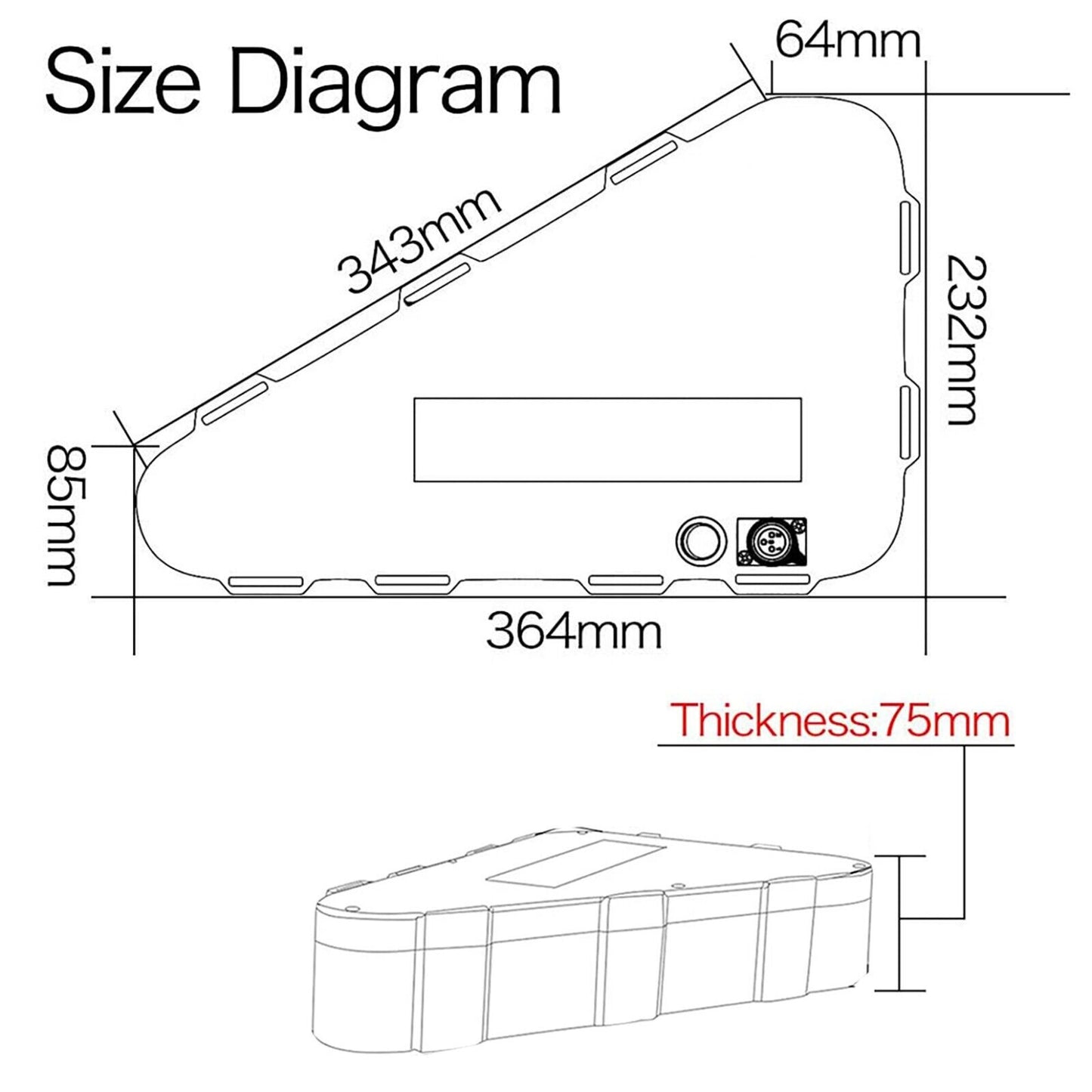

• Please check the size of the battery, bag, and frame size before purchasing to make sure the battery can be fitted into your bike frame.
• Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
• Our 500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 22A and a nominal capacity of not less than 10Ah.
• The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 500W Motor is not path legal, this product is recommended for off-road or private property use only.
• Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
