Electric bike conversion kit equipped with a 2000W Brushless Motor and 15AH Lithium Battery that reaches speeds up to 69km per hour and the max range is 60km per charge by pedal assist. Our electric bike conversion kit and electric bicycle kit contain a twist throttle and 12 magnets Pedal Assistant System. They are very helpful, even if on steep hills place. You can ride it very comfortably.

Specifications

• For Fat Bike with 26-inch x 4-inch Wheel
• Rim Motor: 52V 2000W Brushless Direct-Drive Hub Motor
• Torque: 65 N.M
• Wiring Method: Waterproof Wire Connection System
• Maximum Speed: 65 - 69 km/h
• Display: Intelligent Coloured LCD Panel Display
• Controller: Intelligent Motor Controller, the Current is 40±1A
• Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
• Rear Fork Width Requirement: 170mm
• Disk Brake Only with 6 Holes to Mount the Disc Rotor
• Brake levers: Aluminum Alloy Wuxing E-brake Lever
• Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
• PAS Sensor: 12 Magnets Pedal Assist Sensor
• Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
• 12 Months Replacement Warranty on the Motor & Battery

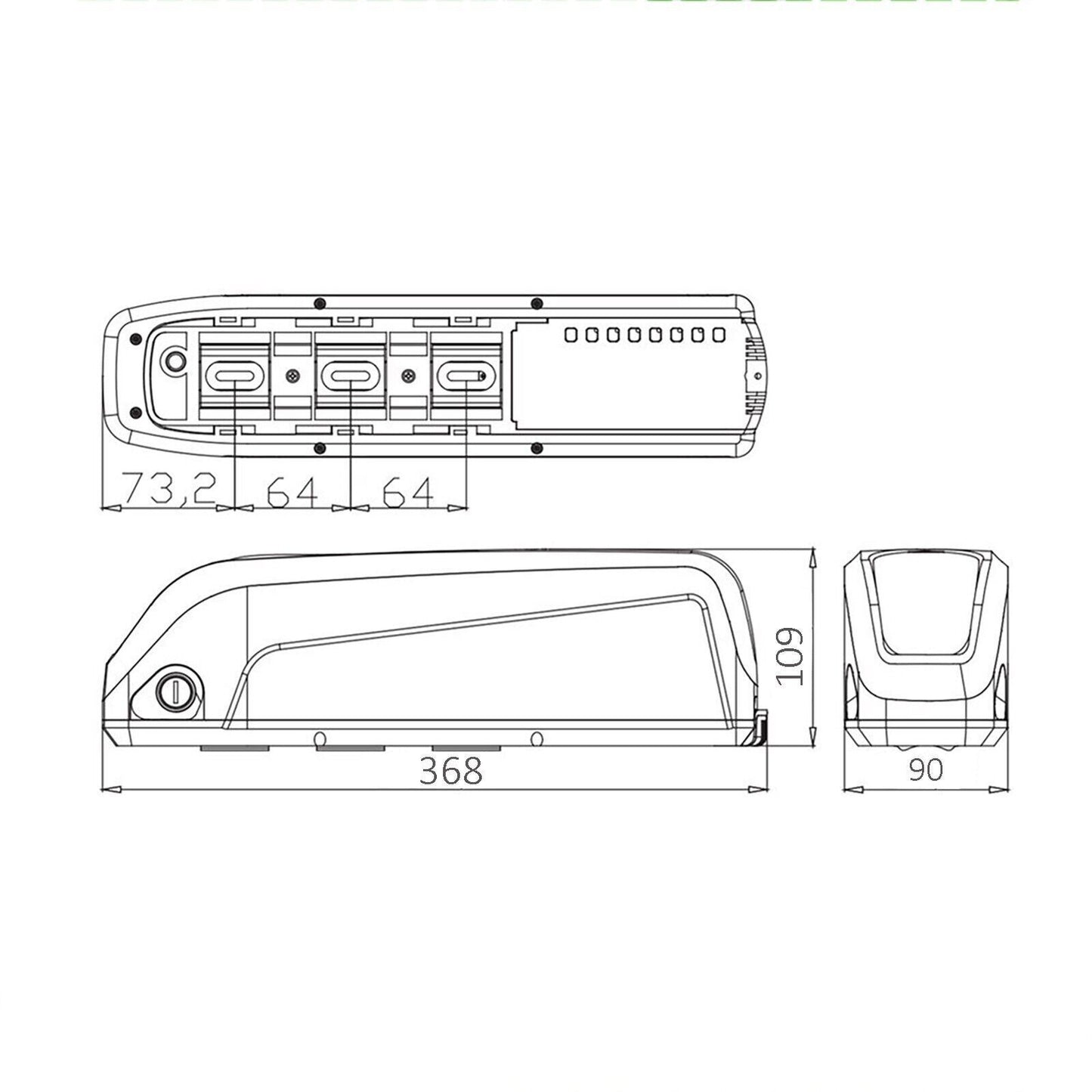

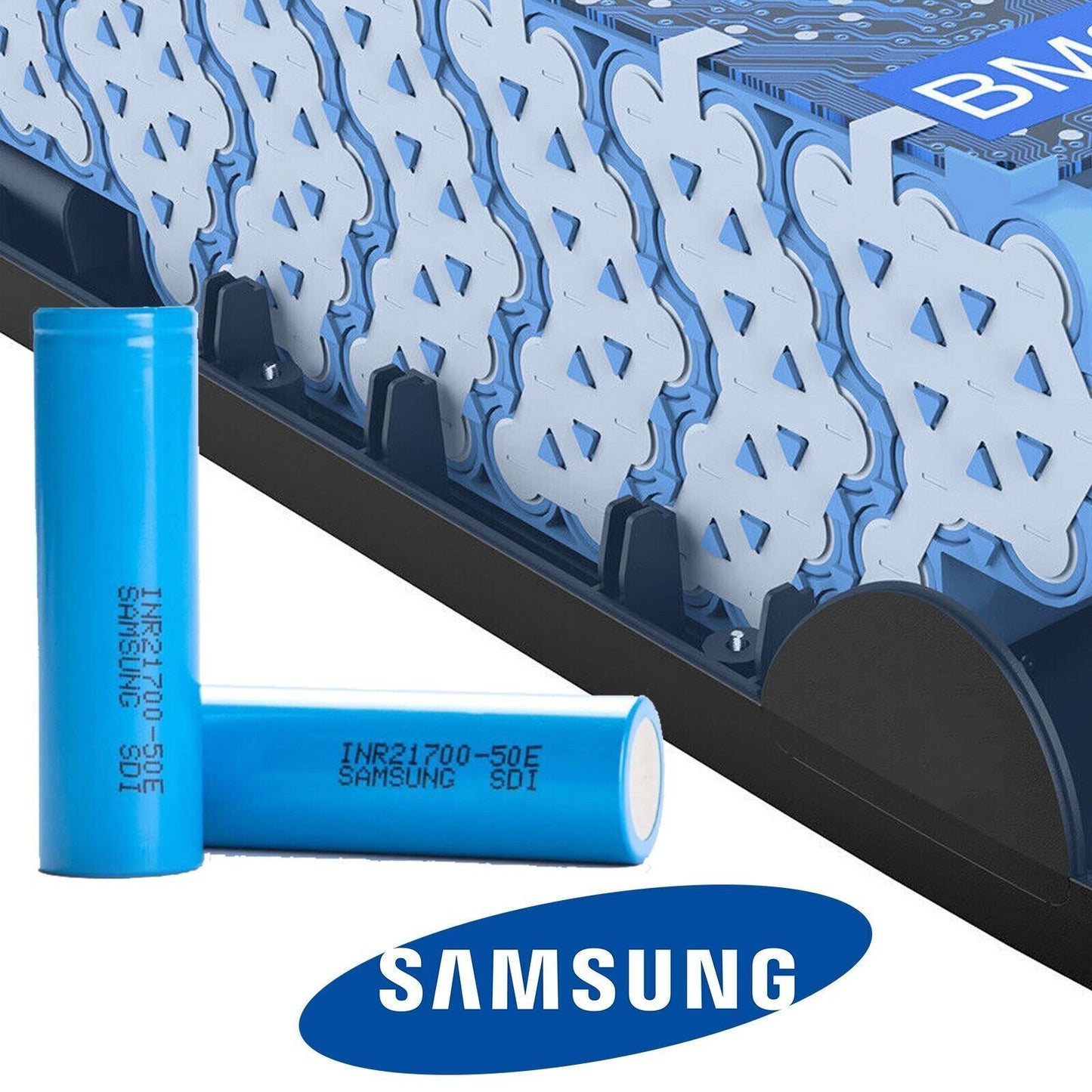

• Samsung 500mAh Cell 52V 15AH Downtube Battery with Bottom Mount
• Riding Range: Up to 60 km range with Pedal Assist Mode

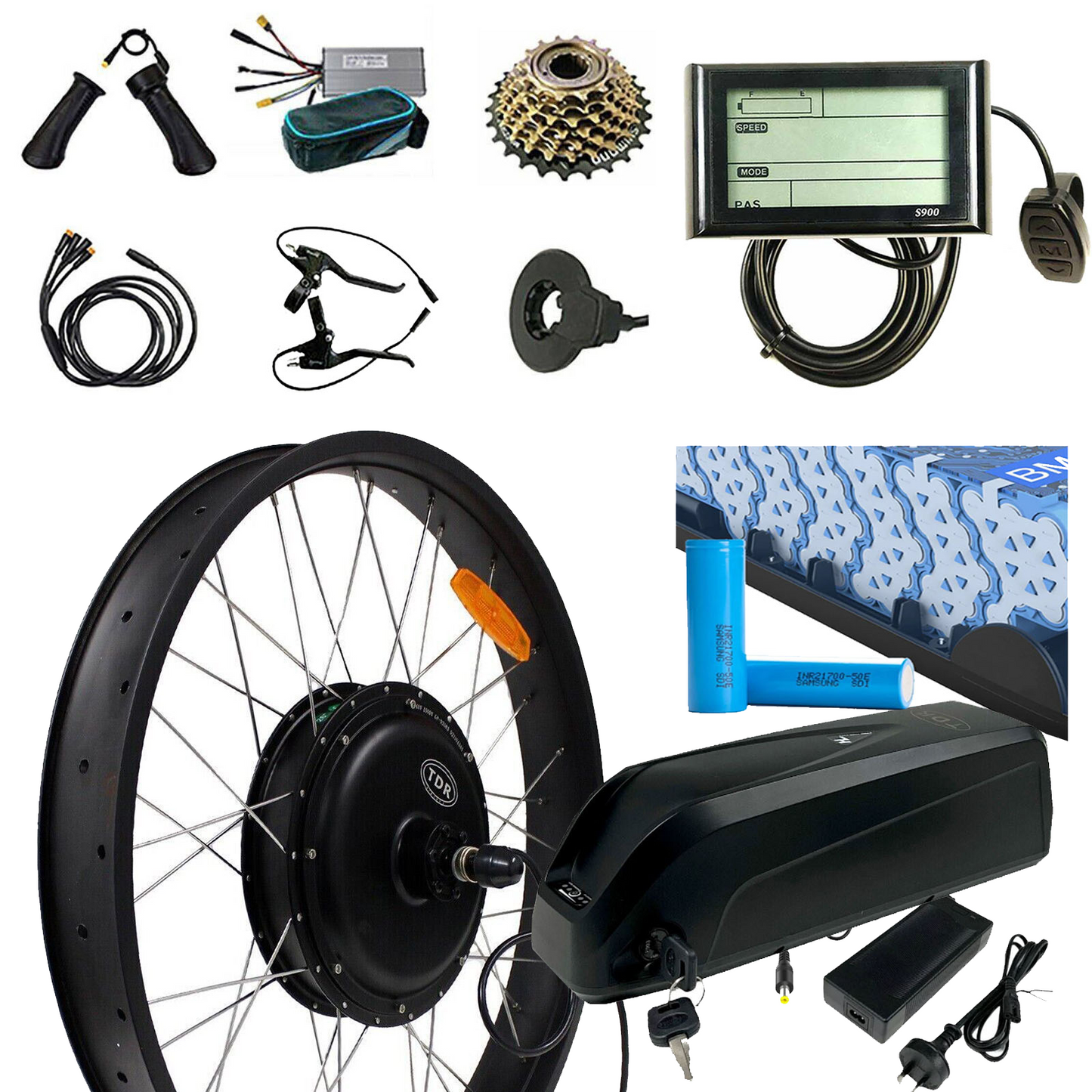

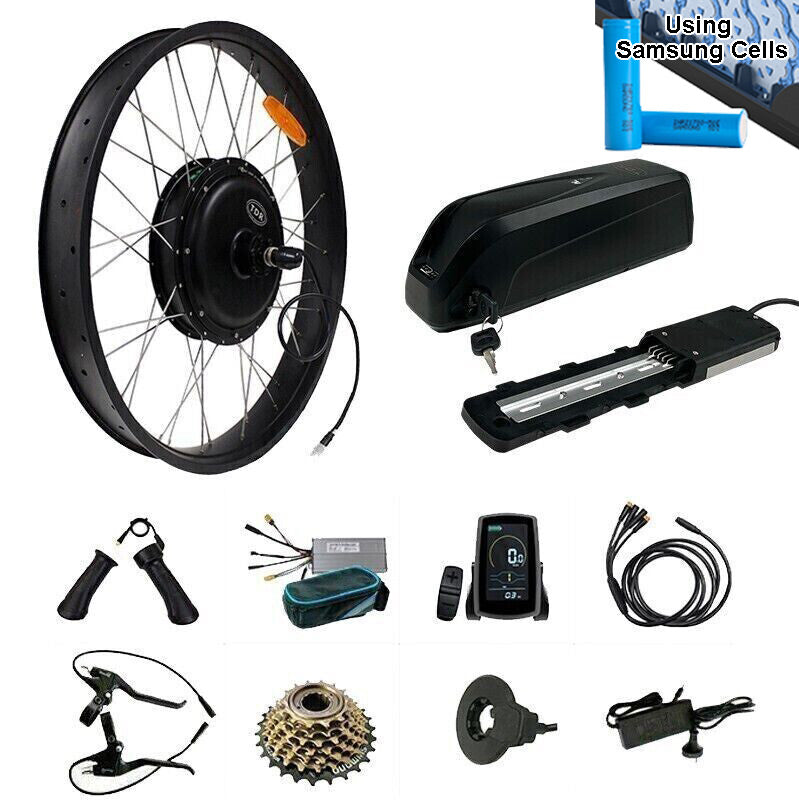

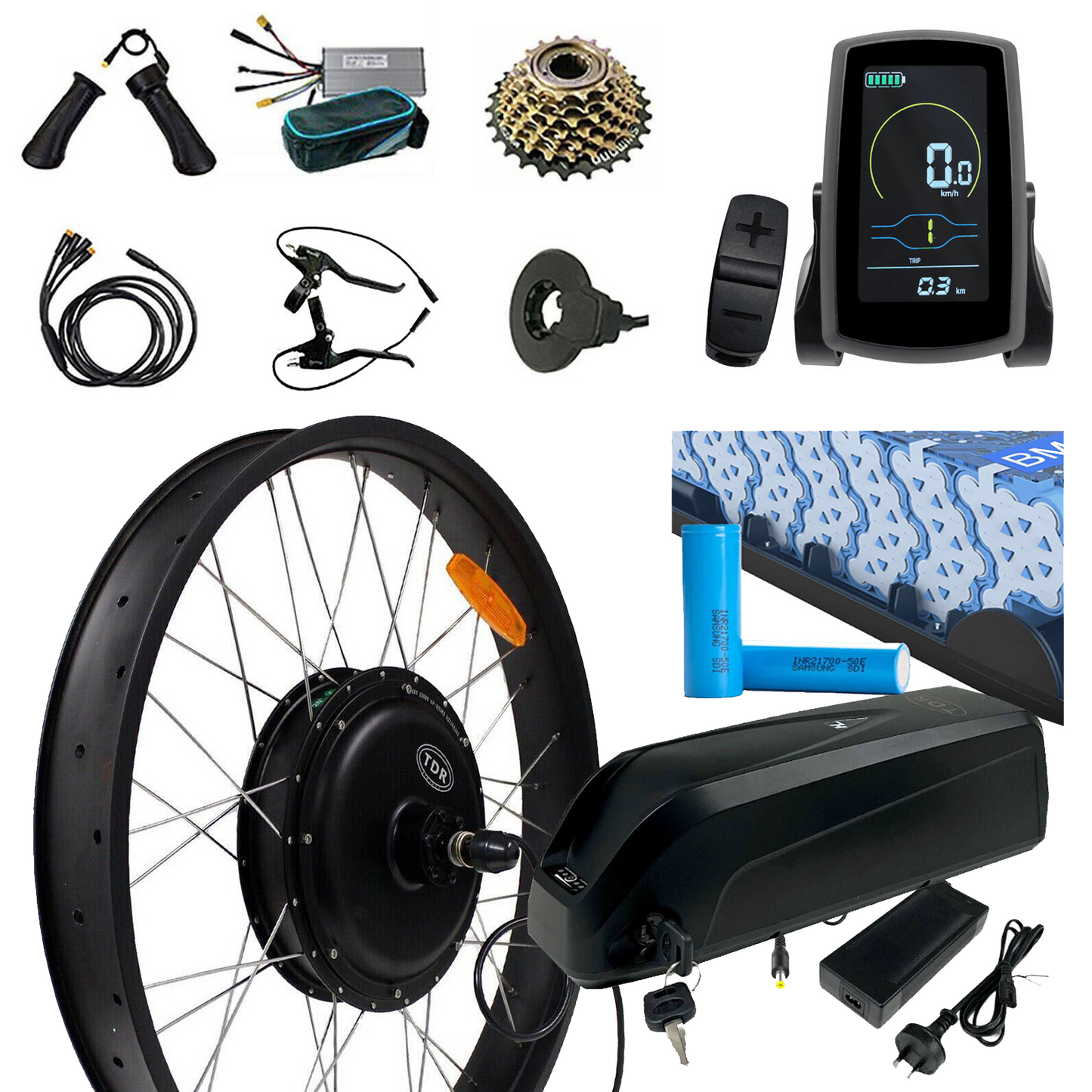

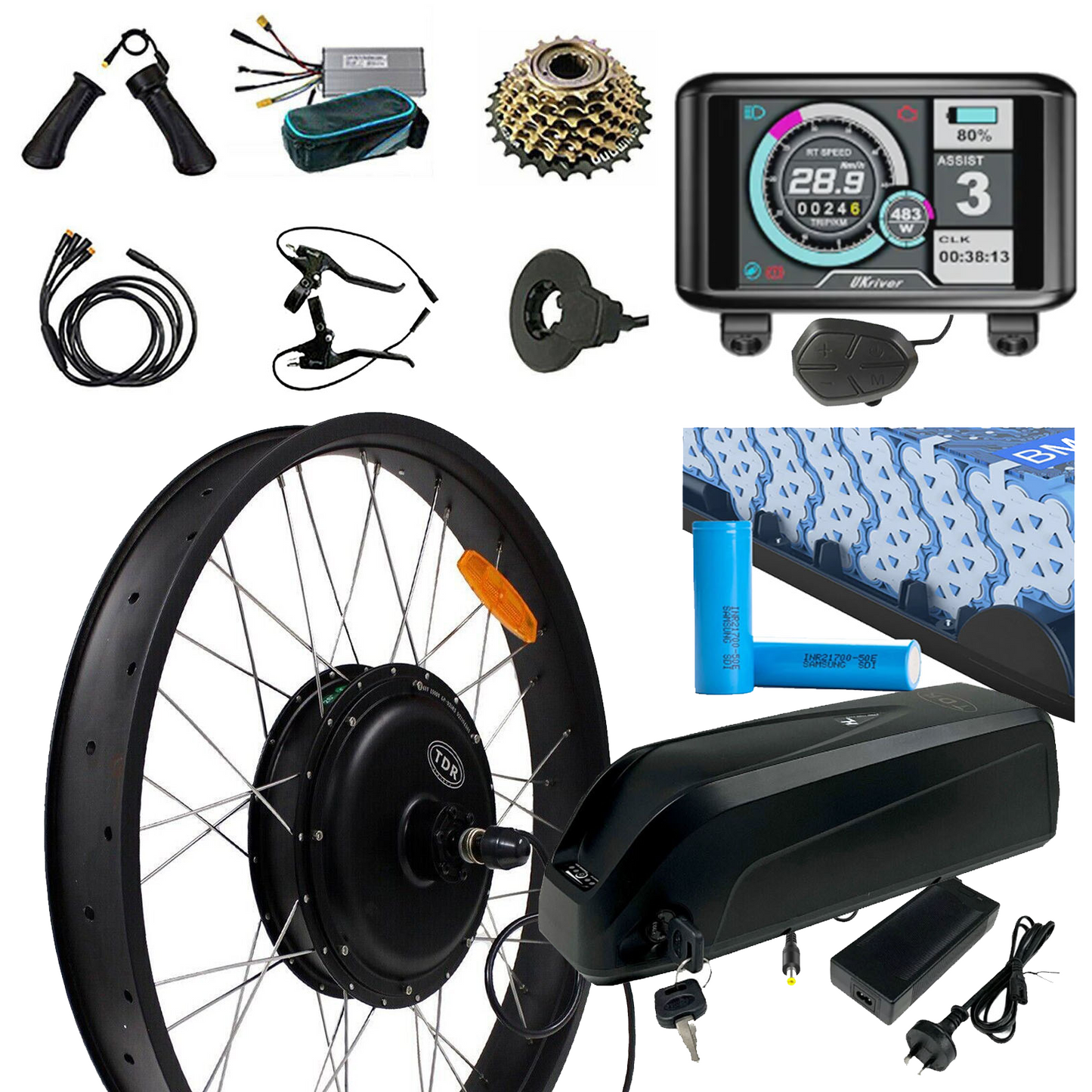

Package Include :

• 1x 52V 2000W Rear Rim Motor
• 1x Intelligent Motor Controller
• 1x Controller Bag
• 1x Pedal Assist Crank Sensor
• 1x Pair of E-Brake Levers
• 1x Twist Throttle
• 1x LCD Display
• 1x Cable Ties Set
• 1x Manual
• 1x 6 or 7 Speed Freewheel
• 1 x 52V 15AH Downtube Battery & Charger Set

Important Notes

• Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
• Please check your rear fork width (170mm) to make the motor hub can be fitted into it.
• Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
• The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 2000W Motor is not path legal, this product is recommended for off-road or private property use only.
• Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
• Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
