Road Legal 250W 28"/29"/700C Front Hub Electric Bike Conversion Kit
Road Legal 250W 28"/29"/700C Front Hub Electric Bike Conversion Kit
SKU:
Couldn't load pickup availability
- Wheel Size: 700C front wheel (Suitable for tyre width size 1.50 to 2.25)
- Motor: 36V 250W Brushless gear hub motor in black colour
- Wiring method: Waterproof wire connection system
- Battery range: +/-50km per power in pedal assist mode
- Max. Speed: Up to 25 km/h
- Display: KT LCD5
- Controller: KT Brand Controller
- Riding mode: Thumb throttle electric assist mode /Pedal Assist mode
- Front fork width requirement: 98-102mm
- Suitable for Disk Brake and V brake to use
Specifications:
- Motor: 36V 250W front hub brushless gear motor, bending magnet and more efficient
- Brake levers: aluminium alloy, Wuxing E-brake lever
- Rim and spokes: P25DE Alloy double wall rim CNC sidewalls, with 12g steel spokes
- Controller: KT Brand 36V controller in controller box, maximum current rate: 14±1A
- Throttle: Thumb(Finger) Throttle, Wuxing brand
- PAS Sensor: 8 Magnet
- Display: KT LCD5, Show all basic information and DIY setting
- Battery: 36V Lithium-ion Battery, light weight and reliable
- Riding Range: Max 40km(10AH)/ 50km(13AH) / 60km(15Ah)/ 72km(18Ah)when using Pedal Assist Mode on our bicycles
- Charger: More than 1000 times cycle-life and Australia safety standard
Key feature:
- Built to the highest international standards, CE
- Powerful 250W36V brushless hub motor
- Alloy rim & steel spoke & aluminium alloy powerful controller
- Aluminium alloy powerful controller guarantee big current supply
- Thumb Throttle with waterproof cables has battery level and power-cut off
- Brake Levers cut off the power supply to the motor safely
- Battery 36V gives more power and runs more distance with reliable quality
- Charger with more than 1000 times cycle-life. Australia Safety standard .
KT brand controller features:
- Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural
- Electric power assist is with fast response and always consistent with the riders pedal action to achieve the effect of the torque boost
- With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic
- KT LCD5 Display functions: battery level indicator (4 bars), 3 speed display modes (current, maximum, average), traction help up to 6km / h, odometer, trip duration display

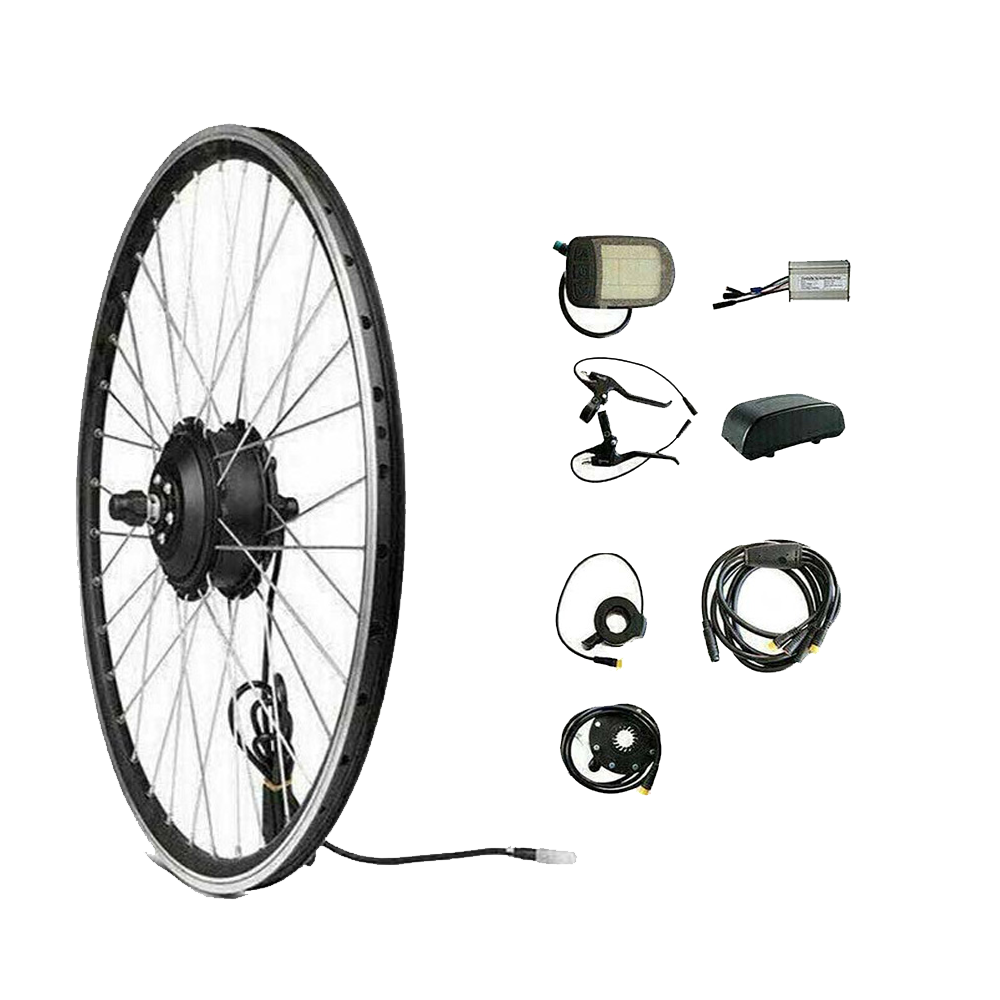

What's in the box:
- 1 x 700C front rim (250W motor)
- 1 x Controller
- 1 x LCD display
- 1 x Pair e-brake levers
- 1 x Thumb throttle
- 1 x PAS sensor set
- 1 x Wiring cable
- 1 x Controller box
- 1 x Installation manual
- 1 x Battery & charger (Optional)
Important notes:
- Professional installation is highly recommended, some basic tools will be required to install this DIY kit
- Please check the battery sizes and make sure it can fit your bike triangle frame
User manuals
Electric Bike & E-Kit Manuals Guide
In the interests of your safety and the safety of others, it is highly recommended to have your bicycle assembled and serviced / adjusted by a skilled bicycle mechanic.
If you have any questions regarding any issues with your electric bicycle, please contact our customer support team on: 03 9931 1626 or info@tdrmoto.com.au.
Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
Maintenance & Troubleshooting
Assembly of Rear Hub Motor E-bike
How to remove Scooter S151 Speed Limitation
How to install quick release electric bike front wheel
KT-LCD5 - How to reset the LCD
KT-LCD5 - How to set up password
KT-LCD5 - How to remove the password
How to Install Front Wheel of E-BIKE & Align the Mechanical Disc Brake
How to Adjust and Remove the noise on Mechanical Disc Brakes E-BIKE
How to turn on the Front Light of E-Bike
Convert Pas Pedal Assist Electric Bike To Throttle Accelerator - S508
Convert Pas Pedal Assist Electric Bike To Throttle Accelerator - S501
How to install the Mirrors on Tricycle
How to fix conversion kit error 3
Electric Bike Battery Care Instructions & Warranty
Customer Reviews

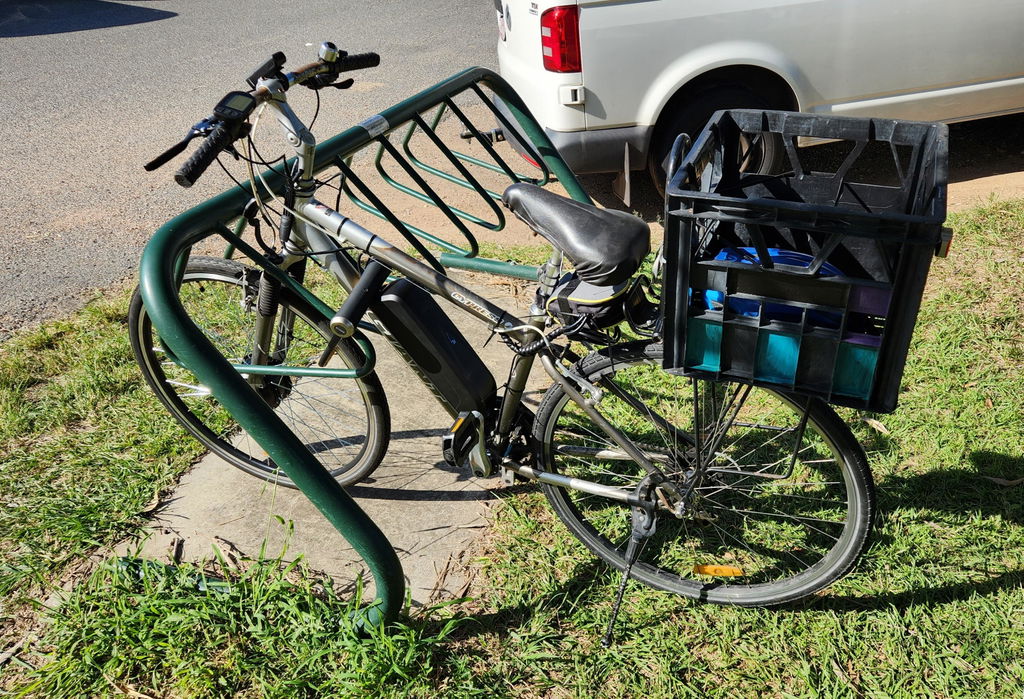

Great kit, 700c for 29" tyre, relatively easy to install on new budget mountain bike. Needed a spacer washer on motor axle to clear fork on cable side, non-standard size (small OD, large ID) and had to manufacture it. Would have been helpful to have a couple included in the kit. The pedal assist sensor assembly was glued (JB Weld) to the bike's bottom bracket, but the sensor element protruded too far and fouled the magnet ring. Plastic sensor moulding fractured when removing it, so it had to be drilled and tapped, with corresponding clearance hole in the mounting bracket. Remounted using a spacer for clearance. Everything else seemed to go OK - you'll probably need more zip ties, get some decent thick ones. Thumb throttle not strictly legal in Australia but I fitted it anyway! (Display software can be modified to make it speed-limited/legit). Ordered a canvas waterproof pouch to house the controller and hide all the excess cable lengths - the supplied plastic enclosure is a bit too small. If fitting wheel to aluminium forks a torque arm is recommended, otherwise the dropouts will see the reaction-torque from the axle and might crack under the stress. BTW, You'll need a few specialised tools, e.g. crank puller. Kit is good value and I'd use it again. Makes for a very comfortable powered ride :-)
This kit has worked well for my bike. There are a few things that aren't the best (controller case has wrong screws so is unusable, plastic battery dock isn't the most secure, instructions are fairly basic), but given the price I'm fine with this. The bike runs well and the motor helps me up hills.
Bike kit arrived in 2 days. Well done auspost.top quality made kit. Fitted very easy in 4hrs.very satisfied.well done TDTmoto cheers roly
Bought my first kit about 2 months ago for my wife as she is awaiting a hip replacement opperation and can hardly walk let alone cycle,however by using the throttle control she can still get out in the fresh air and keep up with the group without having to pedal at all with a proven range on the flat of up to 40klm.
I was so impressed i recently converted my own bike so i can keep pace with her although i can go a lot further using pedal power with motor assist on hills when i need it.
Best thing since sliced bread thoroughly recommend converting your own bike at a fraction of the cost of purchasing a complete motorised push bike.
